Product Details:
|
| Distance: | 20km | Connector: | Duplex LC |
|---|---|---|---|
| Rate: | 1.25Gb/s | Wavelength: | 1310nm |
| Components: | FP Laser | DDM: | Yes |
| Compatible: | Cisco, HP, Alcatel Lucent, Juniper Or Custom | Temperature: | Commercial Or Industrial Optional |
| High Light: | optical transceiver module,fiber optic module |
||

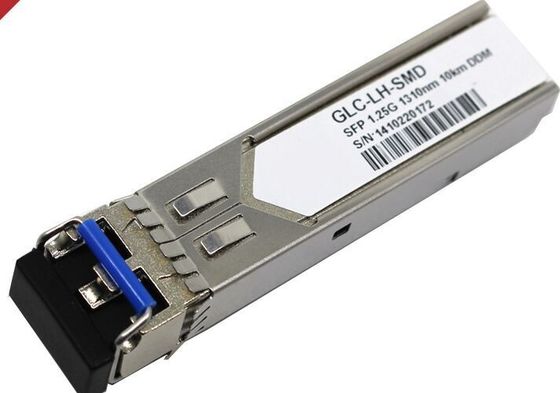

Cisco GLC-LH-SMD Compatible 1000BASE-LX/LH SMF 1310nm 10km SFP Transceiver
Description
The Cisco GLC-LH-SMD compatible transceiver provides a high performance and cost-effective small form factor pluggable module for 1000BASE-LX/LH Gigabit Ethernet and 1G Fiber Channel application. It fully complies with the SFP Multi-Sourcing Agreement (MSA) and can be used on the MSA compliant networking equipment. The product is tested to be compatible with Cisco networking equipment including Ethernet Switches, Ethernet Routers, Network Interface Cards (NICs) and Media Converters. It is an ideal equivalent to Cisco GLC-LH-SMD 1000BASE-LX/LH long-wavelength DOM SFP transceiver but with much lower price, which provides a reliable compatible transceiver solution for system integrators, distributors and end users in network infrastructure and fiber cabling.
The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
Features
Dual data-rate of 1.25Gbps/1.063Gbps operation
1310nm FP laser and PIN photodetector for 20km transmission
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Digital Diagnostic Monitoring: Internal Calibration or External Calibration
Compatible with SONET OC-24-LR-1
Compatible with RoHS
+3.3V single power supply
Operating case temperature:
Standard: 0 to +70°C
Industrial : -40 to +85°C
Applications
Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems
Optical Characteristics
| Parameter | Symbol | Min | Typical | Max | Unit | Notes | ||
| Transmitter | ||||||||
| Centre Wavelength | λc | 1260 | 1310 | 1360 | nm | |||
| Spectral Width (RMS) | σ | 4 | nm | |||||
| Average Output Power | Pout | -9 | -3 | dBm | 1 | |||
| Extinction Ratio | ER | 9 | dB | |||||
| Optical Rise/Fall Time (20%~80%) | tr/tf | 0.26 | ns | |||||
| Data Input Swing Differential | VIN | 400 | 1800 | mV | 2 | |||
| Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | |||
| TX Disable | Disable | 2 | Vcc | V | ||||
| Enable | 0 | 0.8 | V | |||||
| TX Fault | Fault | 2 | Vcc | V | ||||
| Normal | 0 | 0.8 | V | |||||
| Receiver | ||||||||
| Centre Wavelength | λc | 1260 | 1580 | nm | ||||
| Receiver Sensitivity | -23 | dBm | 3 | |||||
| Receiver Overload | -3 | dBm | 3 | |||||
| LOS De-Assert | LOSD | -24 | dBm | |||||
| LOS Assert | LOSA | -35 | dBm | |||||
| LOS Hysteresis | 1 | 4 | dB | |||||
| Data Output Swing Differential | Vout | 400 | 1800 | mV | 4 | |||
| LOS | High | 2 | Vcc | V | ||||
| Low | 0.8 | V | ||||||
Notes:
1. The optical power is launched into SMF.
2. PECL input, internally AC-coupled and terminated.
3. Measured with a PRBS 27-1 test pattern @1250Mbps, BER ≤1×10-12.
4. Internally AC-coupled.
Mechanical Dimensions
