LC Duplex Fiber Patch Cord Connectors High Density For 2.0mm SM MM OM3 OM4 Cable

LC Duplex Fiber Patch Cord Connectors High Density For 2.0mm SM MM OM3 OM4 Cable
LC Duplex Fiber Patch Cord Connectors High Density For 2.0mm SM MM OM3 OM4 Cable LC Duplex Fiber Patch Cord Connectors High Density For 2.0mm SM MM OM3 OM4 Cable LC Duplex Fiber Patch Cord Connectors High Density For 2.0mm SM MM OM3 OM4 Cable

Large Image :  LC Duplex Fiber Patch Cord Connectors High Density For 2.0mm SM MM OM3 OM4 Cable

Product Details:
Place of Origin: China
Brand Name: ANC
Certification: RoHS
Model Number: Duplex LC Connector
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: please ask
Packaging Details: 100pcs/bag
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 30000pcs per day

LC Duplex Fiber Patch Cord Connectors High Density For 2.0mm SM MM OM3 OM4 Cable

Description
Housing Color: Blue, Beige, Aqua, Violet Or Custom Boot Color: White, Blue, Violet, Red Or Custom
Boot Type: Short, Angled, Bendable Or Custom Ferrule: 1.25mm Ceramic Ferrule
Concentricity: <0.5um Or <1.0um Or <4.0um Cable: 2.0mm, 3.0mm Or Custom
Packing: 100pcs/bag Or Customized HS Code: 8536700000
High Light:

fiber optic cable connectors

,

sma fiber optic connector

LC Duplex Fiber Optic Connector for 2.0mm SM, MM, OM3, OM4 Cable



Description

LC duplex fiber optic connector manufactured by ANC International Co., Limited has a pull-proof design and small size perfect for high-density applications. Available in simplex or duplex versions. The LC connector is licensed by Lucent Technologies and uses a 1.25mm zirconia ferrule inside. The LC Fiber Connectors also incorporates a unique latching mechanism providing stability in system rack mounts. LC Fiber patch cord connector is half the size of SC Fiber connector and is widely used in SFP and current generation switches. Two LC connectors are often held together in a duplex configuration with a plastic clip.

LC Fiber Connectors provided by ANC International Co., Limited has short boot, angled boot, bendable boot and regular boot optional.

The housing color and boot color of duplex LC connector can be customized, normally it is blue color for SM/PC, green color for SM/APC, beige color for OM1 & OM2 fiber, aqua color for OM3 fiber, violet color for OM4 fiber. This difference in color makes it easier to identify.

Besides standard LC simplex and duplex connector, ANC has also uniboot LC connector, mini LC connector, waterproof LC connector optional upon request.



Specification

LC Fibre Connector Type: SM LC/PC, SM LC/APC, MM LC/PC OM3 , OM4 LC connector available

LC Connector Boot Type: 0.9mm, 2.0mm, 3.0mm optional

LC Connector Color: Blue, Green, Beige, etc.

Simplex, Duplex, Uniboot, with Griphook LC Optical Connector optional

One-piece or Multi-piece LC Fiber Connector available

Different ferrule concentricity optional (<0.5um for P grade, <1.0um for S grade or <4.0um for MM)

Different ferrule inner diameter optional



Features

Good concentricity of LC ceramic ferrule

Increase panel density with small size

RoHS compliant for all LC connector material



Usage

Telecommunication

Data Network

LAN, FTTX

CATV

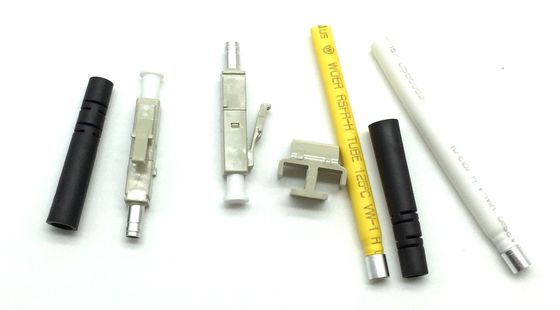

Connector Components

LC Duplex Fiber Patch Cord Connectors High Density For 2.0mm SM MM OM3 OM4 Cable 0



SN Name Color Material Weight
1 Dust cap White PP 0.03g
2 Housing Beige/Blue/Aqua PEI 0.22g
3 Spring / Stainless steel 0.08g
4 Ceramic ferrule / Bronze+ceramic 0.16g
5 Tube transparent PE 0.01g
6 Stopper Beige/Blue/Aqua PEI 0.07g
7 Boot Black/White/Aqua TPV 0.13g
8 Heat-shrinkable Tube Yellow/White PFE+Aluminum 6061 0.2g



Technical Data

Parameter Unit LC, SC, FC, ST, E2000, MU, LX.5
SM MM
UPC APC PC
Insertion Loss (Typical) dB ≤ 0.2 ≤ 0.2 ≤ 0.2
Return Loss dB ≥ 50 ≥ 60 ≥ 30
Exchangeability dB ≤ 0.2
Repeatability dB ≤ 0.2
Durability Time ≥ 1000
Operating Temperature -40 ~ 75
Storage Temperature -40 ~ 85



Related Pictures

LC Duplex Fiber Patch Cord Connectors High Density For 2.0mm SM MM OM3 OM4 Cable 1

LC Duplex Fiber Patch Cord Connectors High Density For 2.0mm SM MM OM3 OM4 Cable 2
