Product Details:
|
Connector A: | Fullaxs LC | Connector B: | Regular Duplex LC Or Custom |
---|---|---|---|
Fiber Type: | SM, OM3, OM4 Or Customized | Cable Diameter: | 7.0mm Or Custom |
Armored: | With Or Without Optional | Insertion Loss: | <0.30dB |
Return Loss: | >50dB For SM/PC; >60dB For SM/APC | Waterproof: | IP67 Outdoor |
High Light: | optical patch cord,fiber optic jumper |

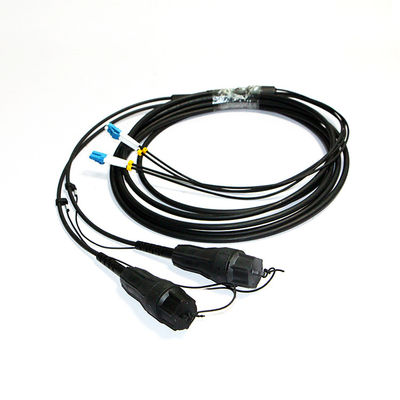

4Core 8Core Fullaxs LC Fiber Optic Patch Cord Outdoor IP67 10M 20M 50M for FTTA
Description
4Core 8Core Fullaxs-LC Fiber Optic Patch Cord manufactured by ANC International Co., Limited is widely used for RRU, base station, FTTA and outdoor waterproof conditions. Next generation WIMAX and Long Term Evolution (LTE) Fiber To The Antenna (FTTA) connectivity designs require rugged cable assemblies for outdoor use. For direct connection these cable assemblies need to plug directly into the optical transceivers though a bulkhead construction. For this specific application the connector design will need to accommodate for a large tolerance in Z-direction. Furthermore the connector shell needs to allow for easy one handed mating. The FullAXS connector system meets this requirement by allowing for a large Z-direction tolerance while also offering the benefit of one-hand installation of the connector shell. With this new product offering, users can also conveniently remove and replace transceivers through a cutout in the bulkhead that completely eliminates the need to open the entire remote radio box and expose its contents to hazardous weather conditions. For the optical connection, the connector system includes an industry-standard duplex LC interface for fast mating with all LC duplex SFP transceivers.
With the development of distributed antenna syatems(DAS), Fullaxs-LC connectors has become a standard interface for the new generation wireless base station linked to the FTTA equipment that set up outdoor environment.
The FullAXS connector can be designed for either single mode or multimode optical transmission applications. Use the cable assembly firmly establish themselves through the bulkhead is directly inserted into the optical fiber transceiver is directly connected to the WiMax and LTE in FTTA application.
Features
Open bulkhead for easy access to SFP
Positive feedback to operator when fully mated
One-hand mating
Duplex LC interface
Bulkhead cutouts allow for removal of transceiver through the bulkhead (no need to open RRH for transceiver replacement)
Robust bayonet locking for easy, fast, and secure mating
Multimode and single mode
Water proof, dust proof and corrosion resistant
Can be used in a variety of optical fiber communication network field army, military computer systems, airborne or ship borne equipment, repair and other outdoor optical cable system temporary connection.
Product is available in 2 core, 4-core, 6-core, 8-core, 12-core.
Low insertion loss and high return loss
Cable lengths and cable types optional
OEM and ODM customized production
Applications
Widely used in FTTA & FTTH
WIMAX and LTE Base Stations
Used for 3G 4G base station
BBU, RRU, RRH, LTE
Industrial outdoor applications
Aerospace & Defense
Fullaxs-LC Fiber Optic Patch Cord Drawing
1. 2 core outdoor fiber cable, 4.8mm diameter, LSZH, black
2. Fullaxs overmolded drop protection, black
3. Fullaxs overmolded LC Duplex plug assembly
4. heat shrink tubing, black
5. protective tubing, black or customized color
6. LC duplex connector, standard
Other Cable Structure is also optional upon request
Type1: 2×Tight Buffer(0.9mm)+Kevlar+Jacket OD=4.8mm;
Type2: 2×Tight Buffer(0.9mm)+Kevlar+Spiral +Jacket OD=4.8mm
Type3: 0.9mm tight buffer*2 +2.0mm Jacket*2 +2×2.0mm Tube+Jacket OD=7.0mm;
Type4: 0.9mm tight buffer*2 +2.0mm Jacket*2 +2×2.0mm Tube+power cable 0.75M2 *2 Jacket OD=8.5.0mm;
Technical Data
Item | Data |
Insertion Loss | ≤0.3dB |
Return Loss | ≥50dB for SM/PC; ≥60dB for SM/APC; ≥35dB for MM |
Mechanical life | 500cycles |
Working temperature | -40°C~+70°C |
Storage temperature | -40°C~+70°C |
Operating temperature | -10°C~+50°C |
Protection Level | IP67 |
Cable Diameter | 4.8mm or 7.0mm or 8.5mm or customized |
Cable Jacket Material | Blakc LSZH or customized |
Authentication | Meet with RoHS |
