Product Details:
|
| Connector: | LC, SC, FC Or Custom | Fiber Type: | MM 62.5/125 Or MM 50/125 |
|---|---|---|---|
| Cable Jacket: | LSZH, PVC Optional | Diameter: | 1.6mm, 2.0mm, 3.0mm Or Custom |
| Cable Color: | White Or Orange Or Custom | Insertion Loss: | <0.25dB 100% Test Before Shipping |
| Return Loss: | >35dB For MM/PC Typical | Boot: | Standard, Short, Angled Or Custom |
| High Light: | optical patch cord,fiber optic jumper |
||

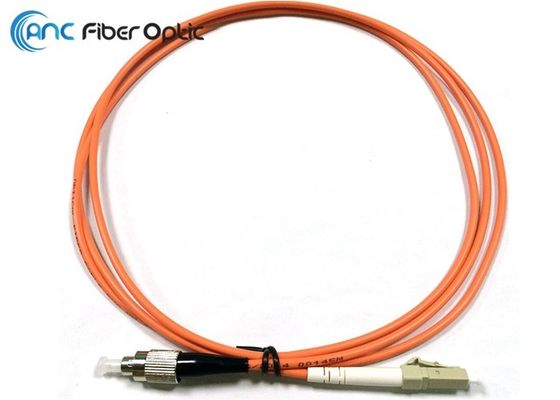

White Color Orange Color Fiber Optic Patch Cord Simplex MM LC SC FC ST Connector
Description
MM Simplex Fiber Optic Patch Cord manufactured by ANC International Co., Limited is specially designed for fast Ethernet, Fiber Channel, Gigabit Ethernet Speeds, data center, premises, educational, LAN, SAN, commercial and Asynchronous Transfer Mode (ATM) applications. It supports video, data and voice services. ANC offers a variety of multimode fiber patch cables with connector types that range from LC, SC, ST and FC. ANC provides fiber patch cords suitable for high-speed bandwidths, including OM3 OM4 OM5 patch cord 50/125, which are optimal for 10Gb/40Gb/100Gb network applications. Multi-mode fiber optic patch cords are known as 62.5/125 or 50/125. This indicates that the interior of the cable, is a glass or plastic core with a diameter of 62.5 or 50 microns. The 125 indicates the outer cladding layer of micron. Boot style are available in standard, short, angled boot. Fiber cables come in white or orange color. Common connectors are LC-LC, SC-SC, LC-SC, ST-ST.
Our company has more than 100 workers in Shenzhen to produce 36000pcs terminators per day. Our skilled workers and quality control department work closely together to guarantee every piece of our fiber optic patch cord is excellent stable quality and fine looking.
In LC family product, we can produce Standard LC patch cord, grade B LC patch cord, LC uniboot Patch Cord; LC Switchable Patch cord, LC Armored Patch Cord, LC IP67 Patch Cord, LC Pigtail, Multi-fiber LC Patch cord, Waterproof LC patch cord optional;
The fiber optic patch cord can be customized in production, color, label, packing, etc. We are very good at OEM and ODM production for various fiber optic patch cords;
Features
MM 62.5/125 OM1, MM 50/125 OM2, OM3, OM4, OM5 fiber optional
Different cable color optional
LC, SC, FC, ST, E2000 customized connector optional
Connect to 10Gb/40Gb/100Gb networks.
Low insertion loss and high return loss
3D pass rate optional;
Cable lengths, cable diameter and cable jacket material optional
OEM and ODM customized production
Applications
Telecommunication
Data Network
LAN, FTTX
CATV
Technical Data
Parameter for OM1/OM2/OM3/OM4 multi-mode patch cord
| Characteristics | Unit | Value/Performance |
| Insertion Loss (IL) | dB | ≤0.2 (typical); ≤0.3 (maximum) |
| Return Loss (RL) | dB | PC≥35 typical |
| Operating Wavelength | nm | 850nm |
| Mating | ≥500 times | |
| Tensile | N | 100 |
| RoHS Compliant | Yes | |
| Operating Temperature | ℃ | -20~+80 |
YOFC maxbend Multimode fiber .pdf
3D pass rate is optional
