Simplex E2000 Fiber Optic Cable Connectors Single / Multi Mode Ceramic Ferrule

Simplex E2000 Fiber Optic Cable Connectors Single / Multi Mode Ceramic Ferrule
Simplex E2000 Fiber Optic Cable Connectors Single / Multi Mode Ceramic Ferrule Simplex E2000 Fiber Optic Cable Connectors Single / Multi Mode Ceramic Ferrule Simplex E2000 Fiber Optic Cable Connectors Single / Multi Mode Ceramic Ferrule Simplex E2000 Fiber Optic Cable Connectors Single / Multi Mode Ceramic Ferrule

Large Image :  Simplex E2000 Fiber Optic Cable Connectors Single / Multi Mode Ceramic Ferrule

Product Details:
Place of Origin: China
Brand Name: ANC
Certification: RoHS
Model Number: E2000 Connector
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: please ask
Packaging Details: 100pcs/bag
Delivery Time: 1-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000pcs per day

Simplex E2000 Fiber Optic Cable Connectors Single / Multi Mode Ceramic Ferrule

Description
Polishing: E2000 PC Or APC Optional Type: SM, MM Optional
Ferrule: Ceramic Concentricity: <0.5um Or <1.0um Or Customized
Boot Diameter: 0.9mm Or 2.0mm Or 3.0mm Dust Cap: Spring-loaded Shutter Cap
Packing: 100pcs/bag Or Customized Compliant: RoHS
High Light:

fiber optic cable connectors

,

apc fiber connector

Simplex E2000 Fiber Patch Cord Connectors Available in Single Mode and Multi Mode



Description

Simplex E2000 Fiber Optic Connector manufactured by ANC International Co., Limited is an important component used in the fiber optic network. It is also the key part used in fiber optic patch cord and fiber optic pigtail. E2000 connector is easy to install, with a push-pull latching mechanism which clicks when fully inserted. This E2000 connector features a spring-loaded shutter which fully protects the ferrule from dust and scratches. The shutter closes automatically when the connector is disengaged, locking out impurities which could later lead to network failure, and locking in potentially harmful laser beams. When it is plugged into the adapter the shutter opens automatically. E2000 fiber optic connector and E2000 products are more and more used in the communication filed because its good performance. E2000 fiber connector and related products comply with IEC 61 754-15 and TIA/EIA 604-16. Externally a E2000 connector looks like a miniature SC connector. The fiber optic connectors we supplied have SC fiber optic connector, FC fiber optic connector, ST fiber optic connector, LC fiber optic connector, MU fiber optic connector, MTRJ fiber optic connector, E2000 fiber optic connector, MPO fiber optic connector, LX.5 fiber optic connector, PDLC fiber optic connector, ODVA fiber optic connector, waterproof fiber optic connector, etc. These connectors can be supplied in assembled one piece type or unassembled separate fiber optic connector components.



Features

Available fiber diameter: 0.9mm, 2.0mm, 3.0mm

Single mode and multi mode optional

Different ferrule concentricity optional

Different ferrule I.D. optional

Low insertion loss and high return loss

Zirconia ceramic ferrule fully protected by spring-loaded shutter

Push-pull locking mechanism for easy installation

PC, APC polishing optional

Usually mounted in a distribution panel or wall box



Usage

Local Area Networks (LANs)

Wide Area Networks (WAN),

Metropolitan Area Networks (MAN)

Data center, business, premises, FTTH and commercial applications

Telecommunication



Technical Data

Parameter Unit E2000 fiber optic connector
SM MM
UPC APC PC
Insertion Loss (Typical) dB ≤ 0.2 ≤ 0.2 ≤ 0.2
Return Loss dB ≥ 50 ≥ 60 ≥ 30
Exchangeability dB ≤ 0.2
Repeatability dB ≤ 0.2
Durability Time ≥ 1000
Operating Temperature -40 ~ 75
Storage Temperature -40 ~ 85



Product Pictures

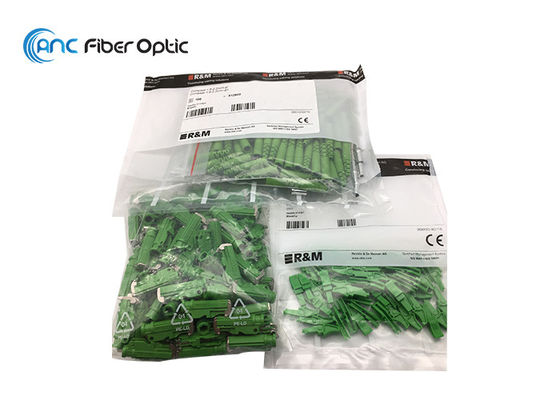

Simplex E2000 Fiber Optic Cable Connectors Single / Multi Mode Ceramic Ferrule 0

Simplex E2000 Fiber Optic Cable Connectors Single / Multi Mode Ceramic Ferrule 1
