Plastic Housing Fiber Optic Attenuator Female To Female Fixed Bulkhead 5dB 10dB

Plastic Housing Fiber Optic Attenuator Female To Female Fixed Bulkhead 5dB 10dB
Plastic Housing Fiber Optic Attenuator Female To Female Fixed Bulkhead 5dB 10dB Plastic Housing Fiber Optic Attenuator Female To Female Fixed Bulkhead 5dB 10dB

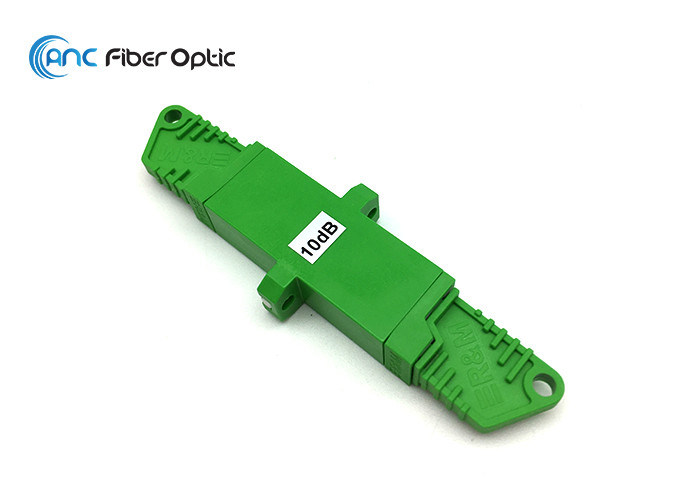

Large Image :  Plastic Housing Fiber Optic Attenuator Female To Female Fixed Bulkhead 5dB 10dB

Product Details:
Place of Origin: China
Brand Name: ANC or customized
Certification: RoHS
Model Number: E2000 Female-Female Attenuator
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: please ask
Packaging Details: 1pc/bag
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs per day

Plastic Housing Fiber Optic Attenuator Female To Female Fixed Bulkhead 5dB 10dB

Description
Attenuation Value: 2dB, 5dB, 10dB, 15dB Or Customized Type: Female-Female Fixed Adapter Type
Housing: Plastic Test Wavelength: 1310nm, 1550nm For SM
I.L.: 0-5dB,±0.5dB; 5dB-20dB, ±10% R.L.: UPC≥50dB; APC≥60dB
High Light:

fixed optical attenuator

,

variable optical attenuator

5dB 10dB E2000 Fiber Optic Attenuator Female To Female Fixed Bulkhead



Description:



E2000 Female to female bulkhead Fiber Optic Attenuator manufactured by ANC International Co., Limited provides a fixed level of attenuation by replacing the existing fiber optic bulkhead adapter at the patch panel with this E2000 Bulkhead Female to Female Fiber Optic Attenuator. This E2000 bulkhead Fiber Optic Attenuators utilize a doped optical fiber filter to achieve attenuation. The female-to-female type of these fiber optic attenuators enables them to accept standard E2000 fiber optic connectors on each side of the bulkhead. Bulkhead Female to Female Attenuators are ideal for use in fiber optic patch panels, instrument front panels, and other applications that require a fixed level of attenuation and easy connectivity. These fiber optic attenuators are available in 5, 10, 15 and 20dB and wavelenghts of 1310nm and 1550nm values and are designed to replace standard bulkhead adapters.

Fiber optic attenuators are devices which reduce (attenuate) the strength of a fiber optic signal within a fiber optic network. Attenuators are usually used when the signal arriving at the receiver is too strong and hence may overpower the receiving elements. This may occur because of a mismatch between the transmitters/receivers (transceivers, media converters), or because the media converters are designed for a much longer distance than for which they are being used. Sometimes attenuators are also used for stress testing a network link by incrementally reducing the signal strength (increasing the dB attenuation) until the optical link fails, thus determining the signal’s existing safety margin.

The most common version of attenuators are male to female attenuators, often called plug-style or buildout style. These build-out attenuators simply mount on one end of a fiber optic cable, allowing that cable to be plugged into the receiving equipment or panel. We also have female to female (bulkhead) attenuators, often used to mount in patch panels or for connecting two fiber optic cables together. More expensive, but useful for testing, are variable attenuators which are adjustable between 1dB and 30dB. We also can custom build in-line attenuators where the attenuator is incorporated within a fiber optic patch cable, built to your specifications.



Features:



Fixed attenuation values of 2dB, 3dB, 5dB, 7dB, 10dB, 15dB or customized;

Optical performance 100% factory tested

E2000 UPC, and APC attenuator type available

Polarization insensitive - doped fiber

Bellcore Compliant (GRW-NWT-910, GR-326-CORE)



Application:



Telecommunications Networks

Patch Panel

Data Communications

Instrumentation

Local Area Networks



Specification:



Parameter Unit Value
Wavelength nm 1310, 1550
Reflection Loss dB UPC≥50dB; APC≥60dB
Attenuation dB 0-5dB,±0.5dB; 5dB-20dB, ±10%
Connector SM E2000 APC or SM E2000 UPC
Type Female to Female Bulkhead Attenuator
Attenuation Value 5dB, 10dB or customized
Operating Temperature -5℃~+70℃
Storage Temperature -40℃~+85℃
