Product Details:
|
| Housing Material: | Zinc Alloy | Boot Color: | Black, Blue, Red, Yellow Or Customized |
|---|---|---|---|
| Boot Diameter: | For 0.9mm Pigtail Cable | Ferrule: | 2.5mm Ceramic Ferrule SM Or MM Optional |
| Concentricity: | <0.5um Or <1.0um Optional For SM Connector; <4.0um For MM Connector | Packing: | 100pcs/bag Or Customized |
| High Light: | fiber optic cable connectors,apc fiber connector |
||

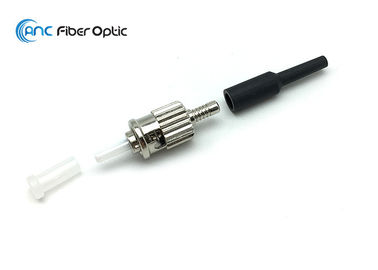

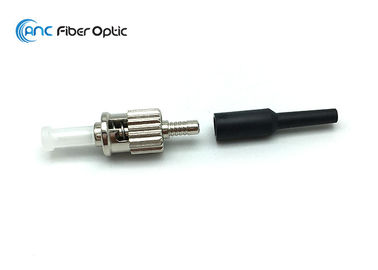

0.9mm ST Fiber Optic Connector, Single mode or Multi mode Optional, 100pcs/Pack
Description
0.9mm ST Fiber Optic Connector manufactured by ANC International Co., Limited are especially designed to provide low insertion loss and back reflection, along with high precision and mechanical stability. ST Means (Straight Tip) It has a bayonet mount that allows for quick connects and disconnects and a long cylindrical 2.5 mm ceramic ferrule to hold the fiber. The ST Connector body is made of nickel plated metal, which resist corrosion. They come with boots suitable for 0.9mm fiber cable diameters. ST connectors feature a screw-on collet that ensures precise connections in high vibration environments. These fiber optic connector kit comply with IEC 61754-13 and TIA 604-4-B, FOCIS-4 intermateability standards and conform to RoHS environmental requirements.
ANC fiber optic connectors kits are available in a variety of optical fiber connectors including, SC, LC, ST, FC, MT-RJ, MU, MPO, LX.5, FDDI, ESCON etc.
Specification
Recommended Cable Diameter: 0.9mm
Polishing: PC
SM and MM ST connectors optional
ST Boot Color: Black, Blue, Yellow, Green, Red, White etc.
Insertion Loss: < 0.3dB
Operating Temperature: -20° to +70° C
One-piece or Multi-piece ST Fiber Optic Connectors available
Features
Accurate mechanical dimensions
Low insertion loss, high return loss,
0.3um, 0.5um, 1.0um, 4.0um ferrule concentricity optional
Excellent compatibility and repeatability
Connector body is made of nickel plated metal, which resist corrosion.
Usage
Local Area Network (LANs)
Wide Area Networks (WAN),
Metropolitan Area Networks (MAN)
Data center, business, premises, FTTH and commercial applications
Optical Access Network
Optical CATV
Technical Data
| Parameter | Unit | LC, SC, FC, ST, E2000, MU, LX.5 | ||
| SM | MM | |||
| UPC | APC | PC | ||
| Insertion Loss (Typical) | dB | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 |
| Return Loss | dB | ≥ 50 | ≥ 60 | ≥ 30 |
| Ferrule Concentricity | um | <0.5um or <1.0um | <4.0um | |
| Ferrule Inner Diameter | um | 125.3um~126.3um | 127um or 126um | |
| Exchangeability | dB | ≤ 0.2 | ||
| Repeatability | dB | ≤ 0.2 | ||
| Durability | Time | ≥ 1000 | ||
| Operating Temperature | ℃ | -40 ~ 75 | ||
| Storage Temperature | ℃ | -40 ~ 85 | ||
