Product Details:
|
| Material: | Copper | Shape: | Rectangle Or Square |
|---|---|---|---|
| Insertion Loss: | <0.2dB | Sleeve: | Ceramic |
| Packing: | 25pcs/box Or Customized | Dust Cap Color: | Red Or Customized |
| High Light: | fiber optic cable adapter,lc duplex adapter |
||
FC DIN Rectangle Fiber Optic Adapters Copper Material For Local Area Network
Description

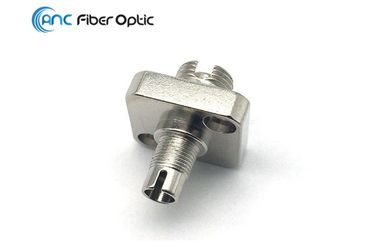

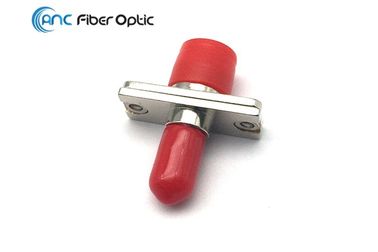

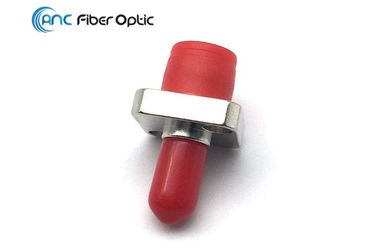

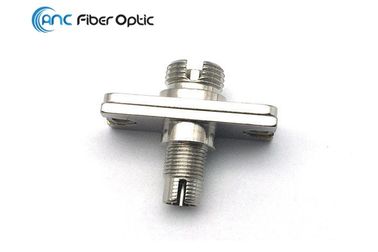

FC-DIN Fiber Optic Adapter manufactured by ANC International Co., Limited uses copper material to ensure high quality and good apperance. It has rectangle or sqaure shape optional. It is mechanical device designed to align DIN Fiber Optic Connector and FC Fiber Optic Connector. DIIN-FC Hybrid Adapter contains the interconnect sleeve that holds the two ferrules together. DIN-FC Hybrid Fiber Adapters offer a solution for hybrid applications where the DIN and FC fiber connectors or cable assemblies need to be linked with each other.
Specification
Low insertion loss, high return loss
Good compatibility
High precision of mechanical dimensions
High reliability & stability
Ceramic sleeve
PC, APC, UPC DIN-FC Hybrid Adapter available
Features
High Precision Alignment
RoHS compliant for all DIN-FC hybrid adapter material
Usage
FTTH, FTTB, FTTC
CATV
Local Area Network
Telecommunication Networks
Equipment Test
Technical Data
| Item | DIN-FC | ||
| Type | Multi-mode | Single-mode | |
| Optical Characteristic | Operating Wavelength | 850nm&1300nm | 1310nm & 1550nm |
| Typical Insertion Loss | 0.2dB & 0.2dB | 0.2dB & 0.2dB | |
| Mechanical Testing | Repeatability | ≤0.2dB | |
| Exchange | ≤0.2dB | ||
| Durability | >1000 (Times) | ||
| Temperature | Storage Temperature | -25oC ~+85oC | |
| Operating Temperature | -25oC ~+85oC | ||
