Product Details:
|
| Name: | SC/APC Side Shutter Adapter | Flange: | No Flange |
|---|---|---|---|
| Sleeve: | Ceramic | Insertion Loss: | <0.2dB (Maximum) |
| Color: | Green, White Or Custom | Certificate: | RoHS |
| High Light: | SM Simplex Fiber Optical Adapter,SUS304 Fiber Optical Adapter,SUS304 ftth adapter |
||

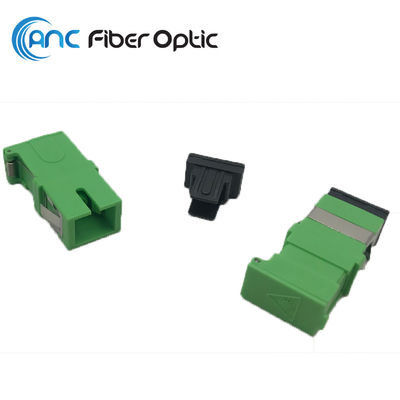

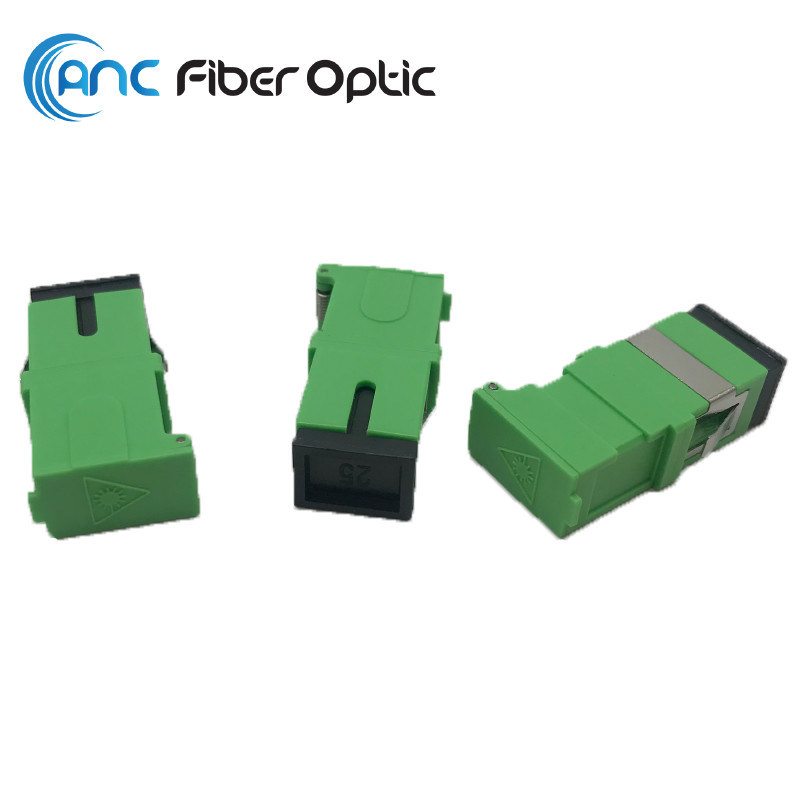

SC APC SM Simplex Fiber Optical Adapter Side Shutter Without Flange
Description of SC Side Shutter Adapter
SC Side Shutter Fiber Optic Adapter manufactured by ANC International Co., Limited comes with outer shutter to prevent harmful laser light from entering the eye and to prevent dust and other contaminants from entering the adapter. SC side shutter fiber optic adapter, also called coupler, is a small device designed to terminate or link 2pcs SC fiber optic cables or fiber optic connectors between two fiber optic lines. By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, sc fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. And each sc side shutter fiber optic Adapter is functionally tested before shipping. This SC side shutter adapter has different color optional and has flanged or flangeless optional.
Features of SC Side Shutter Adapter
Low insertion loss and back reflection loss
High precision alignment
Compact design
With or without flange
Green, White, Blue or customized order optional
Stainless steel mounting clips allow for easy snap in installation
Telcordia, ANSI, TIA/EIA, NTT and JIS compliance
RoHS Compliance
Factory price
Application of SC Side Shutter Adapter
CATV
Metro
Telecommunication networks
Local Area Networks (LANs)
Test equipment
Data processing networks
Parts & Material
| Parts | Material | Remarks |
| Sleeve | Zirconia | |
| Metal Clip | SUS304 | |
| Housing | PC | Flammability UL94 V-0 |
| Shutter Dust cap | PC | Flammability UL94 V-0 |
| Inner Housing | PBT | Flammability UL94 V-0 |
Optical Performance
| Premium Grade | Standard Grade | |
| Insertion Loss | ≤0.1dB | ≤0.2dB |
| Durability | 1000 times | 1000 times |
Related Products Pictures
Flangeless SC Side Shutter Adapter Drawing
FAQ
Q1: Doesn ANC provide free samples?
A: Yes, we provide 1~2pcs free sample for customer evaluation.
Q2: Can I get discount if I order large quantities?
A: Yes. We provide special price for big orders.
Q3: Can I print my logo on the products?
A: Yes. Once customers reach our MOQ, we provide logo print free of charge.
Q4: What's the lead time?
A: Sample is about 1-3 working days; mass production takes about 1-3 weeks.
