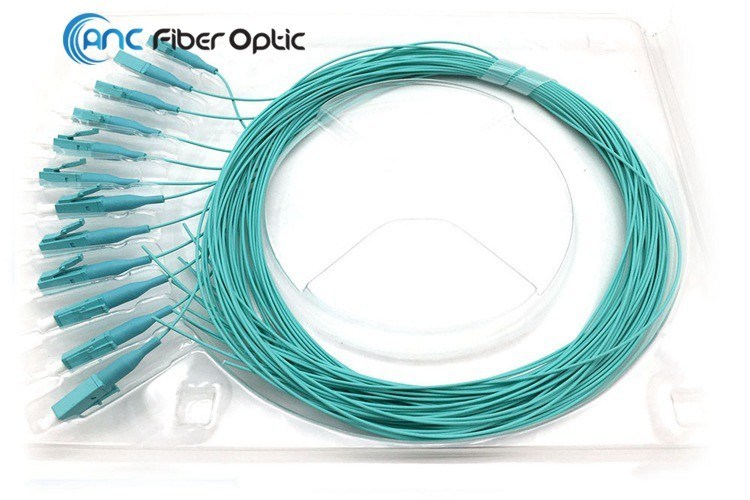

Easy Strip Apc Pigtail Lszh Jacket 2m Length

Easy Strip Apc Pigtail Lszh Jacket 2m Length
Easy Strip Apc Pigtail Lszh Jacket 2m Length

Large Image :  Easy Strip Apc Pigtail Lszh Jacket 2m Length

Product Details:
Place of Origin: China
Brand Name: ANC
Certification: RoHS
Model Number: LC 0.9mm Pigtail
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: please ask
Packaging Details: 1pc/bag
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 30000pcs per day

Easy Strip Apc Pigtail Lszh Jacket 2m Length

Description
Connector: LC, For Customized Fiber Type: OM1, OM2, OM3
Jacket: Easy Strip Or Tight Buffer Jacket Color: White, Orange, Aqua, Violet, Green Or Customized
Length: 1m, 2m Or Customized Jacket Material: LSZH Or PVC Or Hytrel Customized
High Light:

easy strip apc pigtail

,

lszh jacket apc pigtail

,

2m length fiber pigtail lc

LSZH 0.9mm Multimode Fiber Optic Pigtail OM1 OM2 OM3 OM4 OM5 Easy Strip





Description



LSZH 0.9mm Multimode OM1 OM2 OM3 OM4 OM5 Easy Strip LC PC Fiber Optic Pigtail manufactured by ANC International Co., Limited provide a fast way to make factory terminations in the field. Factory terminated pigtails can easily be fusion or mechanically spliced to an existing fiber line. LC fiber optic pigtail connectors feature the RJ-45 style interface with low insertion loss and low back reflection; it is with high precision alignment and is widely used all over the world. The connector is with a 1.25mm O.D zirconia ceramic ferrule; The multimode fiber can be customized OM1 MM 62.5/125 or OM2 50/125 or 10G/40G/100G multimode 50/125 fiber (OM3/OM4/OM5). LC PC fiber optic pigtail is compliant to Telcordia, EIA/TIA and IEC standards.

LC fiber optic pigtail offers the best performance possible for fiber optic cable terminations. Fiber optic pigtails are usually found in fiber optic management equipment like ODF, fiber terminal box and distribution box.



Specification


RJ-45 style interface
Low insertion loss and low back reflection

Different cable color optional

The jacket can be tight buffer, easy-strip or semi-tight;

PC/UPC/APC polishing optional

Interferometer Pass Rate optional
Outside diameter of fibre jacket is mainly 900µm, sometimes 2.0mm or 3.0mm jacket is also optional
The jacket material can be LSZH, OFNR, OFNP, Hytrel or customized



Features

- Good uniformity and low insertion loss

- Low Polarization Dependent Loss

- Excellent Environmental Stability

- Stability Telcordia GR-1221 and GR-1209

- High Reliability and Stability



Usage



FTTH Network

Optical termination box

Fiber Optic Telecommunication

Fiber Distribution Frame

Gigabit Ethernet
Active Device Termination
Premise Installations



Parameter for OM1/OM2/OM3/OM4/OM5 LC PC multi-mode fiber optic pigtail

Characteristics Unit Value/Performance
Insertion Loss (IL) dB ≤0.2 (typical); ≤0.3 (maximum)
Return Loss (RL) dB PC≥35 typical
Operating Wavelength nm 850nm
Mating   ≥500 times
Tensile N 100
RoHS Compliant   Yes
Operating Temperature -20~+80



Advantages Of Fiber Optic Splitter

1. Adopt high strength stainless steel, pass salt spray test

2. Ferrule core is less than 0.2um

3. Adopt 100% new raw material, ROHS compliance

4. Low Insertion loss

5. Low PDL Compact Design

6. Good channel-to-channel uniformity

7. Wide Operating Wavelength: from 1260nm to 1650nm

8. Wide Operating Temperature: from -40℃ to 85℃



Quality

1. 100% new materials for production, the chips are purchased from international firms such as Maxim, CY,Mitsubishi etc.

2. High quality products with ISO9001, RoHS, FCC, CE Certificates.

3. Multiple detection: Raw materials detection, three rounds of testing for the optical and electrical properties, 24 hours aging test, compatibility testing on switches before delivery.
