Product Details:
|
| Connector: | FC/PC, FC/APC Optional | Fiber Type: | SM Or MM Optional |
|---|---|---|---|
| Jacket: | Tight Buffer Or Loose Tube Or Semi-tight | Jacket Color: | Yellow, White, Aqua Or Customized |
| Cable Length: | 1m, 2m Or Customized | Jacket Material: | LSZH Or PVC Or Hytrel Customized |
| High Light: | sc apc pigtail,sc sm pigtail |
||

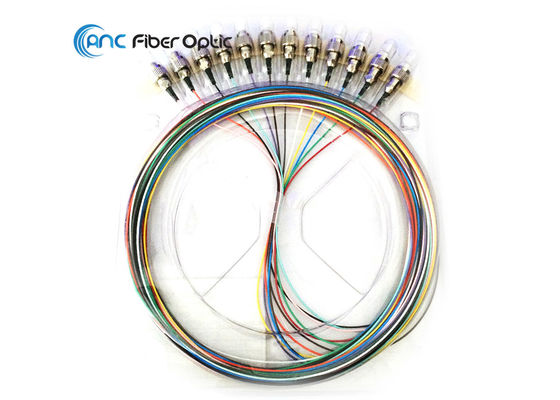

Multimode Single Mode Fiber Pigtails LSZH 0.9mm FC For Optical Distribution Frames
Description
Single Mode Multimode LSZH 0.9mm FC Fiber Optic Pigtail for ODF manufactured by ANC International Co., Limited provide a fast way to make factory terminations in the field. Factory terminated pigtails can easily be fusion or mechanically spliced to an existing fiber line. FC fiber optic pigtail takes the advantage of the metallic body of FC optical connectors, featuring the screw type structure and high precision ceramic ferrules. FC fiber optic pigtails and its related products are widely applied for the general applications.
Specification
Accepts all connectors type
Fiber counts up to 24 cores,
Available in 9/125um, 50/125um, 62.5/125um, OM3, OM4, OM5 customized
Factory Terminated Pre-Tested performance
Color Coded Options
0.9mm, 2.0mm, 3.0mm or customized Cable type
Cable jacket LSZH or PVC
Rapid installation solution
Features
Low insertion loss
High return loss
High temperature stability
High interchangeability
Usage
Optical Distribution Frames
19" Racks mount or Wall mount
Internal Short link
Connection to Equipment
LAN, WAN, Telecom, CCTV
Network Expansion/Relocation
Technical Data
| Item | Parameter | |
| Single-mode | Multi-mode | |
| Insertion Loss | ≤0.3dB | |
| Return Loss | ≥50 dB (PC), ≥60 dB (APC) | |
| Repeatability | ≤0.1dB | |
| Durability | 0.2dB Max. 1000 mattings | |
| Operating Temperature | -40℃~+85℃ | |
| Storage Temperature | -40℃~+85℃ | |
