Product Details:
|
| Connector: | LCPC, LCAPC Or Customized | Fiber Type: | G657A2 Or Customized |
|---|---|---|---|
| Jacket: | Tight Buffer Or Loose Tube Or Semi-tight | Jacket Color: | Yellow |
| Bend Radius: | 15mm For G657A1 Fiber; 7.5mm For G657A2 Fiber | Insertion Loss: | <0.2dB (typical); <0.3dB (Maximum) |
| High Light: | bend intensive pigtail fiber cable,g657b3 pigtail fiber cable,g657a1 lc pigtail singlemode |
||

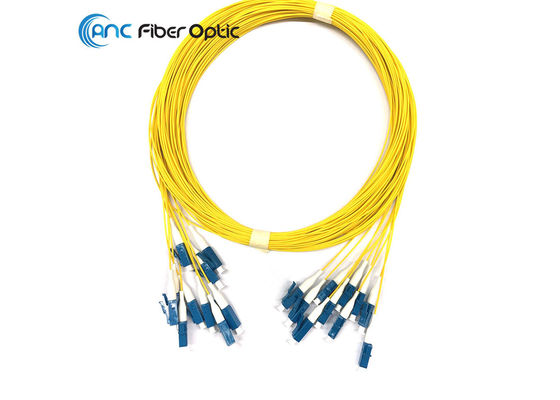

0.9mm LC PC Fiber Optic Pigtail LSZH SM G657A1 G657A2 G657B3 Bend Intensive
Description
LSZH SM G657A1 G657A2 G657B3 Bend Intensive 0.9mm LC PC Fiber Optic Pigtail manufactured by ANC International Co., Limited has SM LC/PC connector on one end, the other end leaves open for fusion or mechanical splicing. This LC PC fiber optic pigtail is produced with customized G657A1 or G657A2 or G657B3 fiber and is widely used in fiber optic management equipment like ODF, fiber terminal box and distribution box.
Specification
Compact, pull-proof design
RJ-45 style interface
Low insertion loss and low back reflection
Different cable color optional
The jacket can be tight buffer, easy-strip or semi-tight;
PC/UPC/APC polishing optional
IL<0.1dB; IL<0.2dB; IL<0.3dB optional
Interferometer Pass Rate optional
Features
Company with Telcodia GR-326 Core Specification
RoHS compliant
Usage
FTTH Network
Optical termination box
Fiber Optic Telecommunication
Fiber Distribution Frame
Gigabit Ethernet
Active Device Termination
Premise Installations
Technical Data
| Item | Parameter | |
| Single-mode | Multi-mode | |
| Insertion Loss | ≤0.3dB | |
| Return Loss | ≥50 dB (PC), ≥60 dB (APC) | |
| Repeatability | ≤0.1dB | |
| Durability | 0.2dB Max. 1000 mattings | |
| Operating Temperature | -40℃~+85℃ | |
| Storage Temperature | -40℃~+85℃ | |
Advantage
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Big stock, Fast delivery(1-3 work days)
6. Excellent Low Power Consumption
