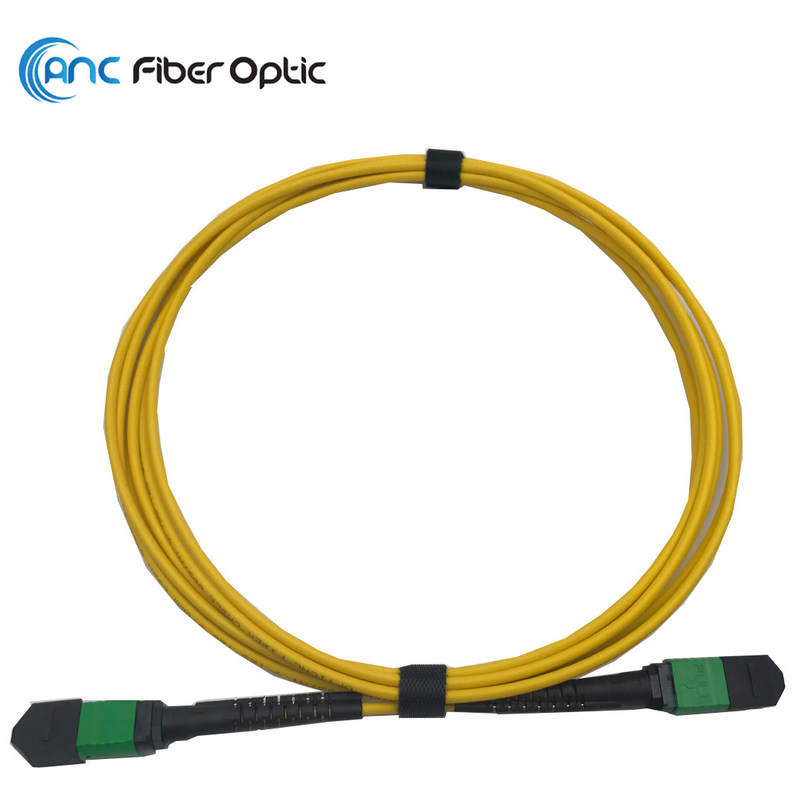

SM G657A1 12F Flex Bend MPO Cable Assembly Flexible MPO Boot 3 Meters

SM G657A1 12F Flex Bend MPO Cable Assembly Flexible MPO Boot 3 Meters
SM G657A1 12F Flex Bend MPO Cable Assembly Flexible MPO Boot 3 Meters SM G657A1 12F Flex Bend MPO Cable Assembly Flexible MPO Boot 3 Meters

Large Image :  SM G657A1 12F Flex Bend MPO Cable Assembly Flexible MPO Boot 3 Meters

Product Details:
Place of Origin: China
Brand Name: ANC
Certification: RoHS
Model Number: Flex Bend MPO Cable Assembly
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: please ask
Packaging Details: 1pc/bag
Delivery Time: 5-7 working days
Payment Terms: T/T
Supply Ability: 2000pcs per day

SM G657A1 12F Flex Bend MPO Cable Assembly Flexible MPO Boot 3 Meters

Description
Name: Flex Bend MPO Cable Assembly Connector A: 12F MPO Female Or Customized
Connector B: 12F MPO Female Or Customized Fiber Mode: SM G657A1 Or Customized
Jacket: LSZH, OFNP Or Customized MPO Boot: Flexible Boot Or Customized
MPO Loss: Standard Or Low Loss Optional Polarity: Type B Or Customized
High Light:

Flex Bend MPO Cable

,

12F MPO Cable

,

MPO Cable Assembly

SM G657A1 12F Flex Bend MPO Cable Assembly Flexible MPO Boot 3 Meters

Description of Flex Bend MPO Cable Assembly

Flex Bend MPO Cable Assembly manufactured by ANC International Co., Limited allows cable exit in varying positions, from 0 to 90°, this can alleviate cable congestion issues and better suitable for high density routing data center. Flex Bend MPO cable assemblies are designed with strain-relief boots that use a flexible and durable steel internal wire that allows an installer to position the boot in place. The “stay-in-place” boot provides strain-relief, but can easily be repositioned without disconnection in order to modify routing requirements while the cable is in service.

This flex bend MPO cable assemblies are available in SM G657A1 or G657A2 or OM3, OM4, OM5 fiber in lengths of 1m, 3m, 5m, 10m, 25 meters, custom lengths are available on request.


Features of Flex Bend MPO Cable Assembly

Bendable strain-relief boots designed to secure any configuration, from 0 to 90°
Round cable improves routing, bending and handling compared to flat-ribbon cable
12 and 24 fiber count options
Ideal for use in applications such as QSFP, CXP and CFP modules

Used for the transition between trunk backbone assemblies and fiber rack system;

Customized furcation length to cater for different installation situations

SM G657A1, G657A2 or OM3, OM4, OM5 MPO cable assembly optional

Low loss MPO and standard loss MPO optional

Green, Beige, Aqua, Yellow, Black and Magenta connector color are available upon request

IEC 61754-7 and TIA/EIA 604-5 Compliant for MPO/MTP® interfaces
Telcordia GR-1435-Core Compliant


Applications of Flex Bend MPO Cable Assembly
Telecommunication
Data Center

Networking
LAN, FTTX
CATV


Optical Performance of Flex Bend MPO Cable Assembly

MPO/MTP SM Standard SM Low Loss MM Standard MM Low Loss
Insertion Loss Typical 0.35dB 0.20dB 0.35dB 0.20dB
Max 0.75dB 0.35dB 0.65dB 0.35dB
Return Loss APC≧50dB   ≧25dB ≧35dB
PC≧40dB
Durability ≤0.3dB (change 500matings) ≤0.3dB (change 1000matings)
Exchangeability ≤0.3dB (Connector randomly)
Tensile Strength ≤0.3dB (Max 66N)
Vibration ≤0.3dB (10~55Hz)
Operation Temperature -40℃ ~ +75℃



3.0mm Round Cable Spec for Flex Bend MPO Cable Assembly

Model Fiber Count O.D. (mm) Weight Max. Tension (N) Max. Crushing (N/100)
(kg/km) Short-term Long-term Short-term Long-term
GJFJV(Y) 12 3.0 8.5 150 80 500 150



MPO MTP Polarity Fiber Link
SM G657A1 12F Flex Bend MPO Cable Assembly Flexible MPO Boot 3 Meters 0
Related Product Pictures
SM G657A1 12F Flex Bend MPO Cable Assembly Flexible MPO Boot 3 Meters 1

FAQ:


Q1: Doesn ANC provide free samples?
A: Yes, we provide 1~2pcs free sample for customer evaluation.



Q2: Can I get discount if I order large quantities?
A: Yes. We provide special price for big orders.



Q3: Can I print my logo on the products?
A: Yes. Once customers reach our MOQ, we provide logo print free of charge.



Q4: What's the lead time?
A: Sample is about 1-3 working days; mass production takes about 1-3 weeks.
