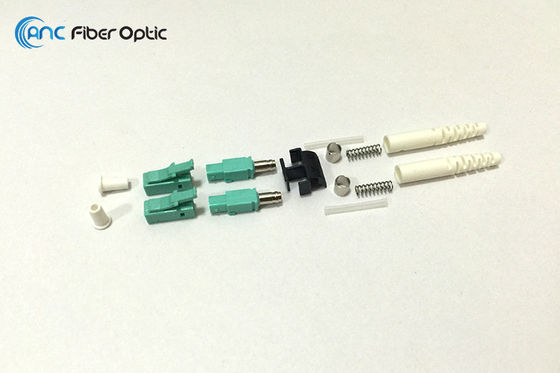

Mini LC Duplex Fiber Optic Connector 5.25mm Pitch Easy Assembly Compact Design

Mini LC Duplex Fiber Optic Connector 5.25mm Pitch Easy Assembly Compact Design
Mini LC Duplex Fiber Optic Connector 5.25mm Pitch Easy Assembly Compact Design Mini LC Duplex Fiber Optic Connector 5.25mm Pitch Easy Assembly Compact Design Mini LC Duplex Fiber Optic Connector 5.25mm Pitch Easy Assembly Compact Design Mini LC Duplex Fiber Optic Connector 5.25mm Pitch Easy Assembly Compact Design

Large Image :  Mini LC Duplex Fiber Optic Connector 5.25mm Pitch Easy Assembly Compact Design

Product Details:
Place of Origin: China
Brand Name: ANC
Certification: RoHS
Model Number: mini LC Duplex connector
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: please ask
Packaging Details: 100pcs/bag
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 30000pcs per day

Mini LC Duplex Fiber Optic Connector 5.25mm Pitch Easy Assembly Compact Design

Description
Housing Color: Blue, Beige Aqua Or Custom Boot Color: White Or Custom
Boot Length: 28.5mm Or Custom Pitch: 5.25mm Mini
Concentricity: <0.5um Or <1.0um Or Customized Clip: Black Or Custom
High Light:

fiber optic cable connectors

,

sma fiber optic connector

Mini LC Duplex Fiber Optic Connector 5.25mm Pitch Blue Beige Aqua Color Optional



Description

Mini LC fiber optic connector manufactured by ANC International Co., Limited is designed with a narrow ferrule pitch to work with the mini SFP (mSFP) transceiver. This accommodates the need of higher port densities provided by the transceivers without compromising performance. The change in pitch was introduced to create a more compact transceiver footprint. With this reduction, port density can be increased without changes to overall enclosure dimensions.
The MINI LC Duplex Connector looks virtually identical to standard LC Duplex connector distinguishable with its black Duplex clip and its 5.25mm pitch versus the 6.25mm used in standard LC Duplex connector. The ferrule concentricity of LC fiber optic connector can be <0.5um or <1.0um or <4.0um optional.



Specification

Increase the density
Extremely compact design
Easy assembly
Ferrule to ferrule pitch reduced from 6.25 to 5.25
Same spec as the Standard LC Connector

Various housing and boot colors optional
Flammability rating: UL 94V-0
TIA/EIA, IEC and Telcordia compliance
Meets with RoHS and REACH

Different ferrule concentricity optional

Ferrule out length: 1.7mm-1.9mm
SM Ferrule I.D. 125.2-126.2um; Concentricity: <=0.5um or <=1.0um
MM Ferrule I.D. 126-127um; Concentricity: <=4.0um



Features

Good concentricity of LC ceramic ferrule

Increase panel density with small size

RoHS compliant for all LC connector material

The connector looks clean, no grease or burr or scratch or crack
The color of the connector looks close each batch, no big difference.
The connector can be insert into or pull out of the adapter smoothly and easily. The clip makes good sound when mating



Usage

Telecommunication

Data Network

LAN, FTTX

CATV



Technical Data

Item Mini LC Connector
Mode Single Mode Multi Mode
Fiber Diameter 9/125um 50/125um & 62.5/125um
Insertion Loss P Grade A Grade P Grade A Grade
≦ 0.20dB ≦ 0.30dB ≦ 0.20dB ≦ 0.3dB
Return Loss UPC ≧ 50dB, APC ≧ 65dB PC ≧ 30dB
Operating Temp. (℃) -40℃ ~ +75℃
Storage Temp. (℃) -40℃ ~ +85℃

Mini LC Duplex Fiber Optic Connector 5.25mm Pitch Easy Assembly Compact Design 0

Mini LC Duplex Fiber Optic Connector 5.25mm Pitch Easy Assembly Compact Design 1

Mini LC Duplex Fiber Optic Connector 5.25mm Pitch Easy Assembly Compact Design 2
