High Power Optical Fiber Patch Cord Customized 200um 400μm 600μm 1000μm Core NA 0.22

High Power Optical Fiber Patch Cord Customized 200um 400μm 600μm 1000μm Core NA 0.22
High Power Optical Fiber Patch Cord Customized 200um 400μm 600μm 1000μm Core NA 0.22 High Power Optical Fiber Patch Cord Customized 200um 400μm 600μm 1000μm Core NA 0.22 High Power Optical Fiber Patch Cord Customized 200um 400μm 600μm 1000μm Core NA 0.22 High Power Optical Fiber Patch Cord Customized 200um 400μm 600μm 1000μm Core NA 0.22

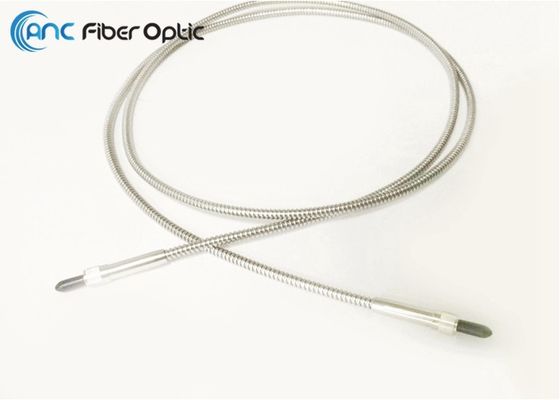

Large Image :  High Power Optical Fiber Patch Cord Customized 200um 400μm 600μm 1000μm Core NA 0.22

Product Details:
Place of Origin: China
Brand Name: ANC or customized
Certification: RoHS
Model Number: High Power Patch Cord
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: please ask
Packaging Details: 1pc/bag
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs terminator per day

High Power Optical Fiber Patch Cord Customized 200um 400μm 600μm 1000μm Core NA 0.22

Description
Connector: High Power SMA Connector Or Customized Fiber Core: 400um Or Customized
NA: 0.22 Or Customized Cable Jacket: Stainless Steel Tube Or Customized
Max Power: 50W, 100W, 200W Or Customized Ferrule: Air-gap Ferrule
Length: Customized Usage: Industrial And Medical Laser
High Light:

optical patch cord

,

fiber optic jumper

High Power Fiber Optic Patch cord , 200um, 400μm, 600μm or 1000μm Core , NA 0.22



Description



High Power Fiber Optic Patch cords manufactured by ANC International Co., Limited are specifically for high power applications. These patchcords feature special high power fibers, carefully prepared fiber endfaces, and specially designed fiber optic connectors to ensure maximum power handling. The High power patch cords have stainless steel armored cable jacket with air gap fiber ferrules.  High power connectors compatible with SMA 905 , FC and ST receptacles are offered. High power patchcords can be made using either multimode, singlemode, polarization maintaining, double cladded, or photonic crystal ("holey") fibers.

The ferrule design of the SMA connector is engineered for large core fibers. Except regular 126-130um SMA ferrule inner diameter, SMA connector has also 200um, 400um, 600um or 1000um inner diameter optional. The large core SMA connector uses mainly stainless steel ferrule inside. The high power SMA patch cord is mainly used for laser industrial or medical applications.

Our company has more than 100 workers in Shenzhen to produce 36000pcs terminators per day. The skilled workers and quality control department work closely together to guarantee every piece of our fiber optic patch cord is excellent stable quality and fine looking.



Features



Unique connector design minimizes thermal damage

Compatible with SMA905 and FC connectors

Customized SMA or FC Ferrule diameter

Cable lengths and cable types optional

Customized fiber optional

OEM and ODM customized production

Used for high power laser diode in industrial and medical system



Applications



Industrial

Medical usage

Laser marking, cutting and welding

High power spectroscopy

Laser surgery (including cosmetic surgery, eye surgery, tattoo removal)



Customized High Power Patch Cord Datasheet

Parameter Value
Connector High Power SMA or customized
Ferrule Stainless Steel or customized
Core/Cladding 200/280, 400/480, 600/720 or customized
Concentricity <10 µm or customized
Numerical Aperture NA 0.22 or customized
Cable Jacket Stainless steel tube or customized
Cable Diameter 5.0mm or customized
Maximum Power 50W, 100W, 200W or customized
Cable Length 5m, 10m or customized



Related Pictures

High Power Optical Fiber Patch Cord Customized 200um 400μm 600μm 1000μm Core NA 0.22 0

High Power Optical Fiber Patch Cord Customized 200um 400μm 600μm 1000μm Core NA 0.22 1

High Power Optical Fiber Patch Cord Customized 200um 400μm 600μm 1000μm Core NA 0.22 2

High Power Optical Fiber Patch Cord Customized 200um 400μm 600μm 1000μm Core NA 0.22 3
