Product Details:
|
| Connector A: | 12F Or 24F MPO / MTP | Connector B: | 12F Or 24F MPO / MTP |
|---|---|---|---|
| Pin: | With Or Without Optional | Length: | 10m, 50m, 100m, 200m Customized Length |
| Fiber Core: | 48F, 72F, 96F, 144F Optional | Polarity: | Type A, B, C Optional |
| Fiber Type: | OS2, OM1, OM2, OM3, OM4, OM5 Optional | Cable Jacket: | LSZH, OFNR, OFNP Or Customized |
| Packing: | Wooden Drum Or Customized | Pull-leg: | Optional |
| High Light: | mpo patch cord,mpo trunk cable |
||

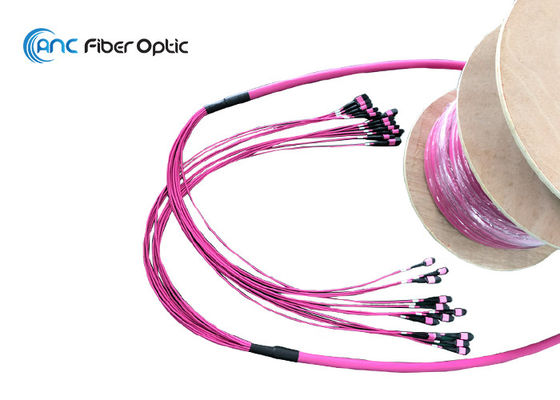

High Density 96F 144F MTP MPO Trunk Cable Assemblies
Description:
96F 144F MTP MPO Trunk Cable Assemblies manufactured by ANC International Co., Limited are high density multi-stranded cables which form the backbone of the data center. MTP MPO trunks are bundles of 1, 2, 4, 6, 8 or upto 12 individual MTP Cables and have 12, 24, 48, 72, 96, 144 Count Fibers per Trunk, respectively. These MTP MPO trunk cables reduce the installation time by consolidating multiple sub-units into a single cable. This approach significantly reduces the overall diameter of the cable and provides much better space utilization of cable routing channels. MTP/MPO patch cord and trunk cable series are definitely an efficient and economical solution at data center. ANC manufactures and supplies MTP MPO trunks in a large diversity of lengths and environmental standards from data center networking to industrial applications. Low loss and standard loss MTP MPO connectors, Male and female connectors, and customized color are available.
Features:
100% Interferemeter Pass
Use 12 or 24 Cores MTP MPO Fiber Connector
Push pull MTP MPO Connectors for easy handling
Backbone installation
Pulling eyes for easier installation is optional;
SM G657A1, SM G657A2, OM3, OM4, OM5 fiber cable are optional;
Standard loss and low loss MTP MPO connectors optional
Customized length optional
48F, 72F, 96F, 144F or other customized fiber count are optional
LSZH, OFNR, OFNP or customized jacket optional;
Lower total costs
Compliance with Telcordia GR-1435-Core Compliant
Applications:
Data center cabling
Serves to serves cabling
CATV,Video and Multimedia
Telecommunication network
Industrial & Milltary
Optical Performance:
| MPO/MTP | SM Standard | SM Low Loss | MM Standard | MM Low Loss | |
| Insertion Loss | Typical | 0.35dB | 0.20dB | 0.35dB | 0.20dB |
| Max | 0.75dB | 0.35dB | 0.65dB | 0.35dB | |
| Return Loss | APC≧50dB | ≧25dB | ≧35dB | ||
| PC≧40dB | |||||
| Durability | ≤0.3dB (change 500matings) | ≤0.3dB (change 1000matings) | |||
| Exchangeability | ≤0.3dB (Connector randomly) | ||||
| Tensile Strength | ≤0.3dB (Max 66N) | ||||
| Vibration | ≤0.3dB (10~55Hz) | ||||
| Operation Temperature | -40℃ ~ +75℃ | ||||
MTP MPO Trunk Cable Specification
| Model | Fiber Count | Cable O.D (mm) | Weight (KG/KM) | Max. Tension (N) | Max. Crushing (N/100) | ||
| Short-term | Long-term | Short-term | Long-term | ||||
| GJFJV | 48 | 9.0±0.5 | 79 | 600 | 200 | 1000 | 300 |
| GJFJV | 72 | 11.2±0.5 | 126 | 1000 | 300 | 1000 | 300 |
| GJFJV | 96 | 13.5±0.5 | 178 | 1000 | 300 | 1000 | 300 |
| GJFJV | 144 | 17.5±0.5 | 285 | 1000 | 300 | 1000 | 300 |
MPO MTP Trunk Cable Test Machine
