Product Details:
|
| Connector A: | IP68-MPO Or IP68-MTP | Connector B: | IP68-MPO Or IP68-MTP |
|---|---|---|---|
| Fiber Mode: | SM, OM1, OM2, OM3, OM4, OM5 | Fiber Core: | 12F, 24F, 48F, 96F Optional |
| Cable Length: | 3m, 5m, 10m, 20m Or Customized | IL: | Standard Loss Or Low Loss Optional |
| IP Grade: | IP68 | Pin: | With Pin (Male) Or Without Pin (Female) |
| High Light: | mpo patch cord,mpo trunk cable |
||

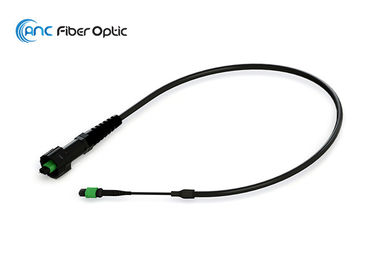

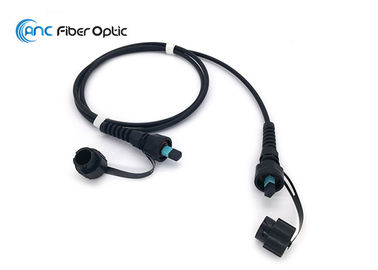

IP68 MTP MPO Fiber Optic Cable Assemblies for the Harsh Environment
Description:
IP68 MTP MPO Fiber Optic Cable Assemblies manufactured by ANC International Co., Limited are designed with rugged and robust housing which fulfills harsh environmental sealing requirement. These IP68 MTP MPO fiber optic cabling is suitable for deploying in FTTA, base stations, transportation, railway systems and any industrial networks. To protect the internal fiber from exposure to the elements, each assembly of ANC's IP68-MPO fiber cable is equipped with ODVA compliant sealed bayonet locking MPO connectors. This bayonet mechanism seals the delicate fiber inside to withstand elements of the harsh environment such as extreme temperatures, chemical, corrosive gases, dust and water exposure.
Features:
100% Interferemeter Pass
Available in SM (9/125), MM (50/125 or 62.5/125), OM3, OM4, OM5 for 10G, 40G/100G transceivers;
Female and Male connectors optional
8Fiber, 12Fiber, 24Fiber MPO MTP Connectors optional;
Standard Loss and Low Loss optional
Customized length optional;
Bayonet locking design with IP68 sealing
High performance in IL & RL
Anti-rat Bite
LC/MTP/MPO Available
Plastic or Metal Shell Optional
Armoured Cable Available
Applications:
Data Center
Harsh Environmental Requirements
Communication Base Station
Railway systems and any industrial networks
Telecommunication Network
Optical Performance:
| MPO/MTP | SM Standard | SM Low Loss | MM Standard | MM Low Loss | |
| Insertion Loss | Typical | 0.35dB | 0.20dB | 0.35dB | 0.20dB |
| Max | 0.75dB | 0.35dB | 0.65dB | 0.35dB | |
| Return Loss | APC≧50dB | ≧25dB | ≧35dB | ||
| PC≧40dB | |||||
| Durability | ≤0.3dB (change 500matings) | ≤0.3dB (change 1000matings) | |||
| Exchangeability | ≤0.3dB (Connector randomly) | ||||
| Tensile Strength | ≤0.3dB (Max 66N) | ||||
| Vibration | ≤0.3dB (10~55Hz) | ||||
| Operation Temperature | -40℃ ~ +75℃ | ||||
| IP Protection | IP-68 | ||||
