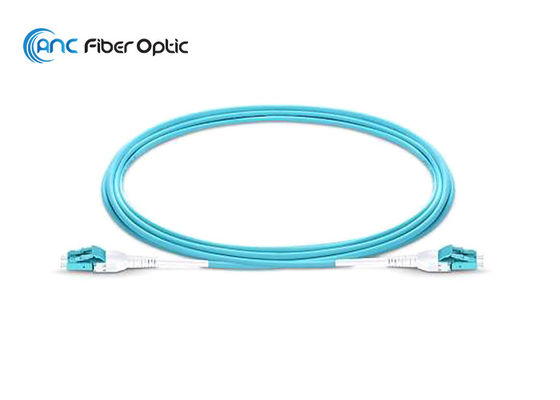

Dual Link Cable Fiber Optic Jumper Non Switchable SM OM3 OM4 LC Uniboot Patch Cord

Dual Link Cable Fiber Optic Jumper Non Switchable SM OM3 OM4 LC Uniboot Patch Cord
Dual Link Cable Fiber Optic Jumper Non Switchable SM OM3 OM4 LC Uniboot Patch Cord Dual Link Cable Fiber Optic Jumper Non Switchable SM OM3 OM4 LC Uniboot Patch Cord Dual Link Cable Fiber Optic Jumper Non Switchable SM OM3 OM4 LC Uniboot Patch Cord

Large Image :  Dual Link Cable Fiber Optic Jumper Non Switchable SM OM3 OM4 LC Uniboot Patch Cord

Product Details:
Place of Origin: China
Brand Name: ANC or customized
Certification: RoHS
Model Number: Uniboot LC-Uniboot LC
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: please ask
Packaging Details: 1pc/bag
Supply Ability: 36000pcs terminator per day

Dual Link Cable Fiber Optic Jumper Non Switchable SM OM3 OM4 LC Uniboot Patch Cord

Description
Connector: SM OM3 OM4 Uniboot LC Polarity: Non-Switchable
Cable: 2 Fiber In One Jacket Diameter: 2.0mm Or 3.0mm Optional
Cable Color: Normally Yellow For SM, Aqua For OM3, Violet For OM4 Fiber Type: G657A1, G657A2, OM3, OM4 Or Customized
Insertion Loss: <0.25dB 100% Test Before Shipping Return Loss: >50dB For SM/PC; >60dB For SM/APC
Length: 1m, 2m, 3m, 5m, 10m Or Customized Pull Leg: Optional
High Light:

optical patch cord

,

fiber optic patch cable

SM OM3 OM4 LC Uniboot Patch Cord, Non-Switchable



Description



SM OM3 OM4 LC Uniboot Patch Cord manufactured by ANC International Co., Limited is constructed for duplex transmission within a single 2.0mm or 3.0mm cable with two fibers in one physical cable. This design delivers maximum connectivity performance in a minimal footprint according to standards, saves upto 50% space in cabling volume and allows easier maintenance and operability. LC uniboot patch cord is used to connect switches or network devices in fiber networks directly or interconnect structured cabling systems in a fiber network.

As the networking environment of today becomes increasingly dependent on high speed and high density solutions, effective cable management is a real issue. The key concern is how to manage more cable in a smaller amount of space. LC uniboot patch cord is delivered basing on this idea. The patch cord utilizes a special “round duplex” cable that allows duplex transmission within a single 3 mm or 2 mm cable. As a result of these features our uniboot patch cord offers improved airflow and visibility of equipment within a high density network environment.

The LC uniboot fiber optic patch cord can be customized in production, color, label, packing, etc. We are very good at OEM and ODM production for various fiber optic patch cords;



Features



two fibers in one round 2.0mm or 3.0mm cable;

Low insertion loss and high return loss

Available in OM3, OM4, OS1/OS2 (ITU-T G.652D or G.657A1) or ITU-T G.657A2 cabled fiber types

Save up to 50% of space in cabinets and cable ways

Cost effective

100% optical testing before shipping

3D pass rate optional;

Cable lengths and cable types optional

PC or UPC or APC termination types

OEM and ODM customized production



Applications



High cabling density applications

Data Center

LAN, FTTX

CATV



Technical Data



Parameter for single mode patch cord

Characteristics Unit Value/Performance
Insertion Loss (IL) dB ≤0.2 (typical); ≤0.3 (maximum)
Return Loss (RL) dB UPC≥50/APC≥60 typical
Operating Wavelength nm 1310 & 1550
Mating   ≥500 times
Tensile N 100
RoHS Compliant   Yes
Operating Temperature -20~+80



Parameter for OM1/OM2/OM3/OM4 multi-mode patch cord

Characteristics Unit Value/Performance
Insertion Loss (IL) dB ≤0.2 (typical); ≤0.3 (maximum)
Return Loss (RL) dB PC≥35 typical
Operating Wavelength nm 850nm
Mating   ≥500 times
Tensile N 100
RoHS Compliant   Yes
Operating Temperature -20~+80





Related Pictures

Dual Link Cable Fiber Optic Jumper Non Switchable SM OM3 OM4 LC Uniboot Patch Cord 0



Drawing

Dual Link Cable Fiber Optic Jumper Non Switchable SM OM3 OM4 LC Uniboot Patch Cord 1
