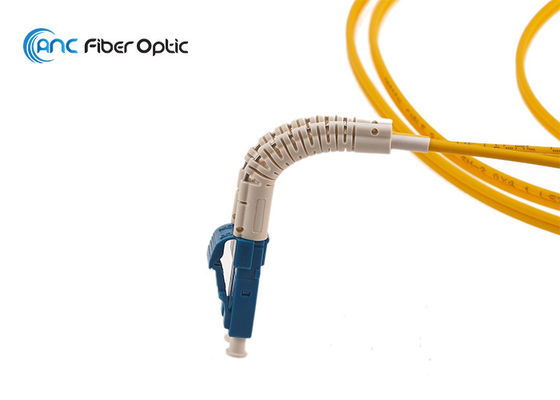

3.0mm LC Flexible Boot Fiber Optic Cable Assemblies LSZH PVC Jacket Customized

3.0mm LC Flexible Boot Fiber Optic Cable Assemblies LSZH PVC Jacket Customized
3.0mm LC Flexible Boot Fiber Optic Cable Assemblies LSZH PVC Jacket Customized 3.0mm LC Flexible Boot Fiber Optic Cable Assemblies LSZH PVC Jacket Customized

Large Image :  3.0mm LC Flexible Boot Fiber Optic Cable Assemblies LSZH PVC Jacket Customized

Product Details:
Place of Origin: China
Brand Name: ANC or customized
Certification: RoHS
Model Number: LC Connector with Flexible Boot
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: please ask
Packaging Details: 36000pcs terminator per day
Supply Ability: 30000pcs per day

3.0mm LC Flexible Boot Fiber Optic Cable Assemblies LSZH PVC Jacket Customized

Description
Connector: LC/UPC, LC/APC With Flexible Boot Or Customized Boot: 3.0mm Flexible Boot
Boot Color: White, Black, Red, Blue, Green, Violet Optional Cable Jacket: LSZH, PVC Optional
Diameter: 2.0mm, 2.4mm, 3.0mm Optional Cable Color: Yellow, White, Blue Or Customized
Fiber Type: G657A1, G657A2 Or Customized Insertion Loss: <0.25dB 100% Test Before Shipping
Return Loss: >50dB For SM/PC; >60dB For SM/APC End Face: Perfect Clean
High Light:

fiber optic jumper

,

fiber optic patch cable

3.0mm LC Flexible Boot Fiber Optic Cable Assemblies in White Black Red Blue Colors



Description

3.0mm LC Flexible Boot Fiber Optic Cable Assemblies manufactured by ANC International Co., Limited utilize specialized flexible boots that can be bent in a variety of angles including 90° without exceeding the recommended bend tolerances of the cable. The Flex-Angle boot is designed to bend and maintain any angle or direction from straight to 90°. The boot is molded over a single stainless steel wire and can be easily positioned by hand. The internal wire holds the boot at the desired angle or direction. Bend them into the angle that best fits your application! Our fiber optic cables are functionally tested to guarantee top performance upon delivery. Custom lengths, connector combinations and polishes are available.



Our company has more than 100 workers in Shenzhen to produce 36000pcs terminators per day. Our skilled workers and quality control department work closely together to guarantee every piece of our fiber optic patch cord is excellent stable quality and fine looking.

In LC family product, we can produce Standard LC patch cord, grade B LC patch cord, LC uniboot Patch Cord; LC Switchable Patch cord, LC Armored Patch Cord, LC IP67 Patch Cord, LC Pigtail, Multi-fiber LC Patch cord, Waterproof LC patch cord optional;

The fiber optic patch cord can be customized in production, color, label, packing, etc. We are very good at OEM and ODM production for various fiber optic patch cords;



Features



Custom labeling available

Available in a wide variety of connector types, cable designs, and lengths

Multiple boot size, colors and angle options available

Custom configurations available upon request

SM G652D, G655, G657A1, G657A2, G657B3 fiber optional

Low insertion loss and high return loss

3D pass rate optional;



Applications



Telecommunication

Data Network

LAN, FTTX

CATV



Technical Data



Parameter for single mode patch cord

Characteristics Unit Value/Performance
Insertion Loss (IL) dB ≤0.2 (typical); ≤0.3 (maximum)
Return Loss (RL) dB UPC≥50/APC≥60 typical
Operating Wavelength nm 1310 & 1550
Mating   ≥500 times
Tensile N 100
RoHS Compliant   Yes
Operating Temperature -20~+80



Parameter for OM1/OM2/OM3/OM4 multi-mode patch cord

Characteristics Unit Value/Performance
Insertion Loss (IL) dB ≤0.2 (typical); ≤0.3 (maximum)
Return Loss (RL) dB PC≥35 typical
Operating Wavelength nm 850nm
Mating   ≥500 times
Tensile N 100
RoHS Compliant   Yes
Operating Temperature -20~+80



3.0mm LC Flexible Boot Fiber Optic Cable Assemblies LSZH PVC Jacket Customized 0



Boot Pictures

3.0mm LC Flexible Boot Fiber Optic Cable Assemblies LSZH PVC Jacket Customized 1



Boot Drawing

3.0mm LC Flexible Boot Fiber Optic Cable Assemblies LSZH PVC Jacket Customized 2
