Green Aqua Duplex LC Fiber Optic Adapters With Internal Shutter Flanged

Green Aqua Duplex LC Fiber Optic Adapters With Internal Shutter Flanged
Green Aqua Duplex LC Fiber Optic Adapters With Internal Shutter Flanged Green Aqua Duplex LC Fiber Optic Adapters With Internal Shutter Flanged Green Aqua Duplex LC Fiber Optic Adapters With Internal Shutter Flanged Green Aqua Duplex LC Fiber Optic Adapters With Internal Shutter Flanged Green Aqua Duplex LC Fiber Optic Adapters With Internal Shutter Flanged

Large Image :  Green Aqua Duplex LC Fiber Optic Adapters With Internal Shutter Flanged

Product Details:
Place of Origin: China
Brand Name: ANC
Certification: RoHS
Model Number: Duplex LC Shutter Adapter
Payment & Shipping Terms:
Minimum Order Quantity: 25pcs
Price: please ask
Packaging Details: 25pcs per box
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 30000pcs per day

Green Aqua Duplex LC Fiber Optic Adapters With Internal Shutter Flanged

Description
Housing: PC Sleeve: Ceramic
Insertion Loss: <0.1dB (Typical) Metal Shutter: SUS304
Packing: 25pcs/box Or Customized Color: Blue, Green, Beige Or Customized
High Light:

fiber optic cable adapter

,

lc duplex adapter

Green Aqua Duplex LC Fiber Optic Adapters With Internal Shutter Flanged



Description

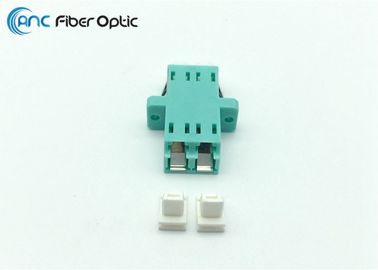

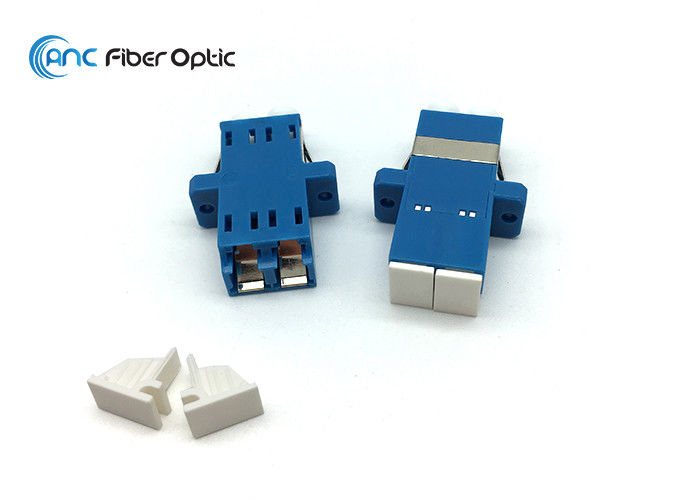

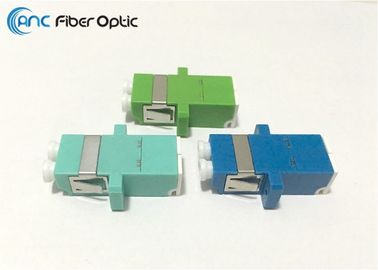

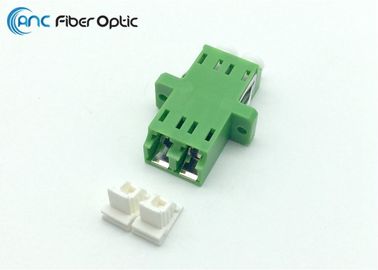

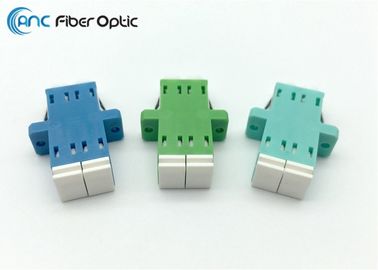

Flanged Blue Green Aqua Duplex LC Fiber Optic Adapter with Internal Shutter manufactured by ANC International Co., Limited is available in either a snap-mount or screw-mount installation style. Individual shutters on one side of the LC shutter adapter are available as an eye-safety option, providing protection even when the adapter is not fully populated. The LC Shutter adapter is available with high stable Zirconia Ceramic alignment sleeves. The color can be blue, beige, green and aqua to identify either single mode, multimode, and Angle Polish (APC) or OM3 type connectors. Mounting dimensions of the duplex LC shutter adapter are identical to the simplex SC adapter and can be used as direct a drop-in replacement.

ANC has big and automatic adapter production lines in Zhejiang Province.  It can supply full-lines of fiber optic adapters, such as

standard bulk head SC, LC, FC, ST, MU, MPO, E2000, MTRJ, DIN, SMA etc fiber optic adapters;

female-female hybrid adapters, such as LC-SC, LC-FC, SC-FC, SC-ST, MU-LC, etc;

female-male hybrid adapters, such as SC Male-LC Female; FC male-SC female fiber optic adapters etc;

Various shutter adapters;

Bare fiber adapters;



Specification



Provides multiple simplex or duplex connection options

Ceramic sleeves

Accommodates single mode and multimode operation

Safety shutters available

Prevents eye injury when a connector is not installed

Snap or screw-style mounting

SC duplex compatible mounting

Provides a direct drop-in replacement solution for density upgrade



Usage



Telecommunication

Hubs

Servers

Routers

Other Markets

Optical DVI

Storage Servers

Local Area Networks

Premise Distribution



Parts & Material

Parts Material Remarks
Sleeve Zirconia
Housing PC Flammability UL94 V-0
Dust cap PC Flammability UL94 V-0
Metal Shutter SUS304



Optical Performance

  Premium Grade Standard Grade
Insertion Loss ≤0.1dB ≤0.2dB
Durability 1000 times 1000 times





Environment and Mechanical

Properties Test condition Compliant Test result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability 1000 Mating, clean every 25 mating. IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-6 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22-28cm IEC61300-2-12 ≤0.2dB
Temperature Cycling 40ºC to +75ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature humidty cycling 40ºC, 95%, 96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC   ≤0.2dB
Storage Temperature -40ºC to +85ºC   ≤0.2dB
