High Performance Fiber Optic PLC Splitter , 2.0mm SCAPC Optical Wire Splitter

High Performance Fiber Optic PLC Splitter , 2.0mm SCAPC Optical Wire Splitter
High Performance Fiber Optic PLC Splitter , 2.0mm SCAPC Optical Wire Splitter High Performance Fiber Optic PLC Splitter , 2.0mm SCAPC Optical Wire Splitter High Performance Fiber Optic PLC Splitter , 2.0mm SCAPC Optical Wire Splitter High Performance Fiber Optic PLC Splitter , 2.0mm SCAPC Optical Wire Splitter

Large Image :  High Performance Fiber Optic PLC Splitter , 2.0mm SCAPC Optical Wire Splitter

Product Details:
Place of Origin: China
Brand Name: ANC or customized
Certification: RoHS
Model Number: 1x16 PLC Splitter
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: please ask
Packaging Details: 2pcs per plastic box or customized
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union
Supply Ability: 100,000pcs per month

High Performance Fiber Optic PLC Splitter , 2.0mm SCAPC Optical Wire Splitter

Description
Insertion Loss: <13.7dB Length: 1m Or Customized
Fiber: G657A1 Or Customized Packing Size: 120x80x18mm
Connector: SC/APC Or Customized Spec: 1x4, 1x8, 1x12, 1x16 Or Customized
High Light:

optical cable splitter

,

optical wire splitter

High Performance Fiber Optic PLC Splitter , 2.0mm SCAPC Optical Wire Splitter



Description

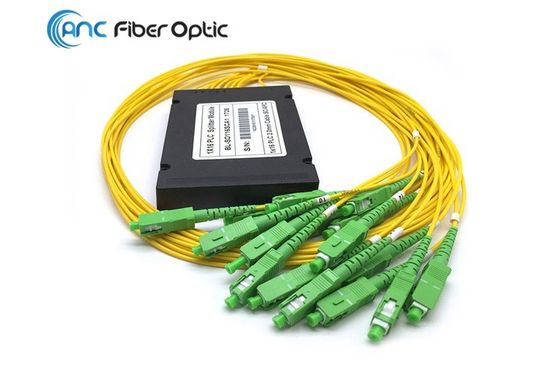

1x16 ABS Box 120x80x18mm Fiber PLC Splitters With 2.0mm SCAPC Connector manufactured by ANC International Co., Limited are a type of optical power management device that is fabricated using silica optical waveguide technology. The ABS Box PLC Splitters have high performance in terms of low insertion loss, low PDL, high return loss and excellent uniformity over a wide wavelength range from 1260nm to 1620nm and working in temperature from -40°C to +80°C. The PLC Optical Splitters have standard configurations of 1x4, 1x8, 1x12, 1x16, 1x32 and 1x64 configurations, as well as customized structures of 2x2, 2x4, 2x8, 2x16, 2x32, 2x64.

ANC can produce full range of PLC splitters with following package

Bare fiber series

Mini loose tube package

ABS Module type

LGX box type

Rack and Wall Mount patch panel for PON application.

Inline fiber optic splice closure type

All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.



Features



1x2, 1x4, 1x8, 1x16, 1x32, 1x64 splits

2x2, 2x4, 2x8, 2x16, 2x32, 2x64 splits

Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: From 1260nm to 1620nm
High Reliability and Stability

SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC connector options



Applications



FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution



Compliance

Telcordia GR-1209-CORE-2001

Telcordia GR-1221-CORE-1999

RoHS



Technical Data



1xN Splitter

Parameters 1×2 1×4 1x6 1×8 1x10 1x12 1×16 1×32 1×64 1×128
Operating Wavelength 1260~1650nm
Fiber Type Default G657A1 or customer specified
Max. Insertion Loss ( P/S Grade ) (dB) 3.8 /4.0 7.2/7.4 9.3/9.5 10.3/10.5 12/12.3 12.3/12.6 13.5/13.7 16.5/16.9 20.5/21.0 23.8/24.2
Max. Loss Uniformity (dB) 0.4 0.6 1.0 0.8 1.4 1.4 1.2 1.5 2.0 2.5
Max. Polarization Dependent Loss (dB) 0.2 0.2 0.3 0.3 0.3 0.3 0.3 0.3 0.4 0.4
Return Loss (dB) ≦-55
Directivity (dB) ≦-55
Operating Temperature -40~85°C
Storage Temperature -40~85°C


* IL, PDL, Uniformity values are for “Without connectors”* IL values are measured @1310&1550nm

* S/P : ‘S’ means ‘Standard Grade’, and, ‘P’ means ‘Premium Grade



1xN Splitter ( Dimension: LxWxH, mm )

Parameters 1x2,1x4,1x8 1x16 1x32 1×64 1×128
SUS Case with Ribbon Fiber 40x4x4 50x7x4 50x7x4 60x12x4 N/A
SUS Case with 900um tube 60x7x4 60x12x4 80x20x6 100x40x6 N/A
Plastic Module Box 100x80x10 120x80x18 140x115x18
19” Rack-mount distribution box or cabinet 19" 1U

19" 2U

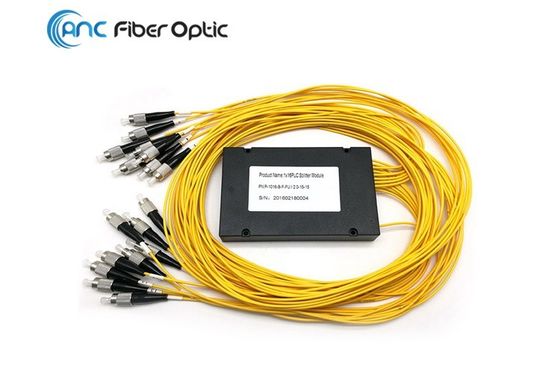

Related Product Pictures
