0.9mm 2.0mm 3.0mm Cable Fiber Patch Cord Connectors SM MM Simplex Duplex SC SCAPC

0.9mm 2.0mm 3.0mm Cable Fiber Patch Cord Connectors SM MM Simplex Duplex SC SCAPC
0.9mm 2.0mm 3.0mm Cable Fiber Patch Cord Connectors SM MM Simplex Duplex SC SCAPC 0.9mm 2.0mm 3.0mm Cable Fiber Patch Cord Connectors SM MM Simplex Duplex SC SCAPC 0.9mm 2.0mm 3.0mm Cable Fiber Patch Cord Connectors SM MM Simplex Duplex SC SCAPC

Large Image :  0.9mm 2.0mm 3.0mm Cable Fiber Patch Cord Connectors SM MM Simplex Duplex SC SCAPC

Product Details:
Place of Origin: China
Brand Name: ANC
Certification: RoHS
Model Number: SC
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: please ask
Packaging Details: 100pcs/bag
Payment Terms: T/T, Western Union
Supply Ability: 30000pcs per day

0.9mm 2.0mm 3.0mm Cable Fiber Patch Cord Connectors SM MM Simplex Duplex SC SCAPC

Description
Housing Color: Blue, Beige, Green, Aqua, Violet Or Customized Boot Color: Blue, Green, Beige, Aqua, Violet, White, Red, Black Or Customized
Duplex Clip: Optional Ferrule: 2.5mm Ceramic Ferrule
Concentricity: <0.5um Or <1.0um Or Customized Type: 0.9mm, 2.0mm, 2.4mm, 3.0mm Type Optional
High Light:

fiber optic cable connectors

,

sma fiber optic connector

0.9mm 2.0mm 3.0mm Cable Fiber Patch Cord Connectors SM MM Simplex Duplex SC SCAPC



Description

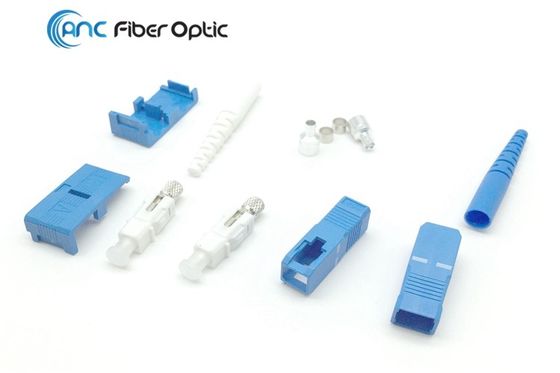

SM MM OM3 OM4 Simplex Duplex SC SCAPC Fiber Patch Cord Connectors manufactured by ANC International Co., Limited is a push-pull type connector that gives an audible click when mated into SC adapter and can also be tuned in 4 positions to provide the lowest insertion loss. These SC Fiber Connectors are widely used in mass production with singlemode and multimode fiber optic cables due to its excellent performance. Two SC connectors can be held together with a plastic clip for a duplex connection. SC Fiber Connectors have Single Mode and Multimode optional and have 0.9mm, 2.0mm 2.4mm or 3.0mm boot type optional. All the SC Fiber Optic Connectors can be offered in pre-assembled or unassembled (kit) formats.



Specification



SC Fibre Connector Type: SM SC/PC, SM SC/APC, MM SC/PC OM3 connector available

SC Connector Boot Type: 0.9mm, 2.0mm, 3.0mm optional

SC Connector Color: plastic housing and boots in green, blue, red, black and beige colors

Simplex, Duplex, Uniboot, with Griphook LC Optical Connector optional

One-piece or Multi-piece SC Fiber Connector available



Features



Compliant with Telcordia, TIA/IEA, IEC and JIS standards

Low insertion loss and back reflection

One-piece construction & push-pull design

Precise SC ceramic ferrule

Precision anti-rotation key and corrosion resistant body

Telcordia style boots



Usage



Telecommunication

Data Network

LAN, FTTX

CATV



Technical Data



Parameter Unit LC, SC, FC, ST, E2000, MU, LX.5
SM MM
UPC APC PC
Insertion Loss (Typical) dB ≤ 0.2 ≤ 0.2 ≤ 0.2
Return Loss dB ≥ 50 ≥ 60 ≥ 30
Exchangeability dB ≤ 0.2
Repeatability dB ≤ 0.2
Durability Time ≥ 1000
Operating Temperature -40 ~ 75
Storage Temperature -40 ~ 85



0.9mm 2.0mm 3.0mm Cable Fiber Patch Cord Connectors SM MM Simplex Duplex SC SCAPC 0
