Product Details:
|
| Input Fiber Color: | Red Or Customized | Output Fiber: | 4sets X 8 Riboon Fiber |
|---|---|---|---|
| Tube Size: | 60x7x4mm | Length: | Customized |
| IL: | <17.3dB | Wavelength: | 1260~1650nm |
| Fiber: | G657A1 Or Customized | Packing: | 2pcs/plastic Box |
| High Light: | optical cable splitter,fiber optic plc splitter |
||
High Reliability Fiber Optic Splitter For Splicing Inside Closure / ODF
Description

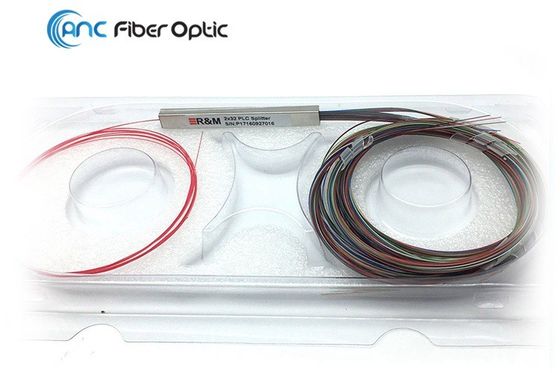

2x32 bare fiber PLC Splitter manufactured by ANC International Co., Limited is stable quality, low cost and largely demanded fiber optic products, used mainly inside closure or ODF to split 2pcs fiber into 32 channels; Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. ANC provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.
Features
Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: From 1260nm to 1650nm
Wide Operating Temperature: From -40℃ to 85℃
High Reliability and Stability
Applications
FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution
Compliance
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
RoHS
Technical Data
Table 1 – 1×N PLC Splitter
| Parameters | 1x2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 |
| Operating Wavelength (nm) | 1260～1650 | ||||||
| Fiber Type | G657A or customer specified | ||||||
| Insertion Loss (dB) | 3.8 | 7.0 | 10.2 | 13.5 | 16.8 | 20.5 | 24.5 |
| Loss Uniformity (dB) | 0.4 | 0.5 | 0.8 | 1.0 | 1.2 | 2 | 2.5 |
| Return Loss (dB) | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.35 | 0.35 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40～85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -5～75 | ||||||
| Storage Temperature (℃) | -40～85 | ||||||
| Device Dimension (mm) (L×W×H) | 40×4×4 | 40×4×4 | 40×4×4 | 50×4×4 | 60×7×4 | 60×12×4 | NA |
| Module Dimension (mm) (L×W×H) | 100×80×10 | 100×80×10 | 100×80×10 | 120×80×18 | 140×115×18 | 140×115×18 | 140×115×18 |
| Mini-Module Dimension (mm) (L×W×H) | 60×7×4 | 60×7×4 | 60×7×4 | 60×12×4 | 80×20×6 | 100X40X6 | NA |
Notes:
1. Specified without connectors.
2. Add an additional 0.2dB loss per connector.
Table 2 – 2×N PLC Splitter
| Parameters | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | 2×128 |
| Operating Wavelength (nm) | 1260～1650 | ||||||
| Fiber Type | G657A or customer specified | ||||||
| Insertion Loss (dB) | 4 | 7.4 | 10.5 | 13.8 | 17.1 | 21 | 24.5 |
| Loss Uniformity (dB) | 0.6 | 1 | 1.2 | 1.5 | 1.8 | 2.2 | 2.5 |
| Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.4 | 0.4 | 0.4 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40～85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40～85 | ||||||
| Storage Temperature (℃) | -40～85 | ||||||
| Device Dimension (mm) (L×W×H) | 40×4×4 | 50×4×4 | 50×4×4 | 50×7×4 | 60×7×4 | 60×12×4 | NA |
| Module Dimension (mm) (L×W×H) | 100×80×10 | 100×80×10 | 100×80×10 | 120×80×18 | 140×115×18 | 140×115×18 | 140×115×18 |
| Mini-Module Dimension (mm) (L×W×H) | 60×7×4 | 60×7×4 | 60×7×4 | 60×12×4 | 80×20×6 | 100X40X6 | NA |
Notes:
1. Specified without connectors.
2. Add an additional 0.2dB loss per connector.
