Product Details:
|
| Fiber Type: | SM, OM1, OM2, OM3 Or Custom | Fiber Length: | 50M, 100M, 500M Or Custom |
|---|---|---|---|
| Color: | Black | Type: | SCA, LCA, SC, LC, FCA Or Custom |
| IL: | <0.5dBm/ Km | Test Wavelength: | 1310/1550nm For SM; 850nm For MM |
| High Light: | fiber optic termination kit,fiber optic stripping tool |
||

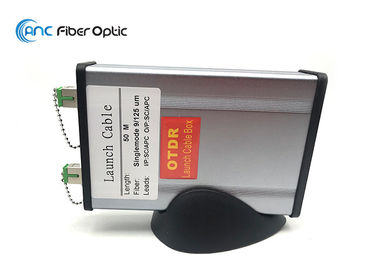

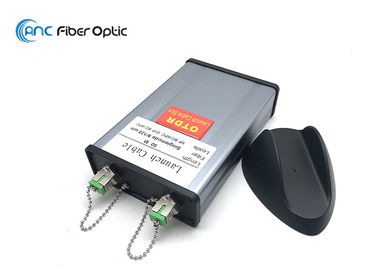

Mini Fiber Optic OTDR Launch Cable Box OTDR Dead Zone Eliminator SM 50M, 100M, 500M
Description
Mini Fiber Optic OTDR Launch Cable Box OTDR Dead Zone Eliminator manufactured by ANC International Co., Limited can be customized length from 50meter to 1000meter. OTDR launch box, according to its function and working principle, has a lot of other names, like dead zone box, pulse suppressor, fiber ring, fiber optic launch cable, etc. The OTDR launch box comes in various packages. The box-design is the most commonly used one with the advantage of durability. It has a long spool of optical fiber with a pigtail on two ends. One of the pigtail is for input, which is used to connect with the OTDR, the other pigtail on the opposite end is for output, which is used to connect with the optical fiber under test. After connecting the input end and output end to the corresponding port, the OTDR launch box can be used to test the attenuation of the fiber link. The fiber type, connector type, polishing type of this OTDR launch box is customized.
Features
SM G652D, SM G657A1, OM1, OM2, OM3, OM4, OM5 customized fiber optional
Water and dust proof, allowing the unit to be taken into almost any environment
Small size
Customized connector or adapter for input and output;
Pulse Suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration
Different length optional
Improve OTDR measurement accuracy
Rugged carrying case for long lifetime in field or factory
Applications
Aid for OTDR Testing
Specification
| Length x Width x Height | 230x180x80 mm for 1km, 2km; 140x96x33 mm for 0.5km |
| Material | Metal |
| Color | Black |
| Weight | 1.0 kg / 0.5 kg (without fiber) |
| Operating temperature | -40° to +55°C |
| Typical Loss | < 1dB @ 1310nm for 1000 meters |
