Product Details:
|
| Channel: | 16ch Or 24ch Or 40ch Or Custom | Channel Spacing: | 50Ghz 100Ghz 200Ghz Or Custom |
|---|---|---|---|
| Band: | C Band Or L Band Or Custom | Filter Shape: | Gaussian Or Broad Gaussian Or Flat Top |
| Connector: | FC/APC Or Customized | Packing: | Module Or Rack Or Custom |
| High Light: | 40CH AWG Module,DWDM awg module,Athermal AWG Module |
||
16CH 24CH 32CH 40CH 100G DWDM Multiplexer DeMultiplexer Athermal AWG
Description
Athermal AWG(AAWG) have equivalent performance to standard Thermal AWG(TAWG) but require no electrical power for stabilization. They can be used as direct replacements for Thin Film Filters(Filter type DWDM module) for cases where no power is available, also suitable for outdoor applications over -30 to +70 degree in access networks. ANC Athermal AWG(AAWG) provide excellent optical performance, high reliability, ease of fiber handling and power saving solution in a compact package. Different input and output fibers, such as SM fibers, MM fibers and PM fiber can be selected to meet different applications. We can also offer different product packages, inluding special metal box and 19” 1U rack mount.
ANC offers a full range of Thermal/Athermal AWG products, including 50GHz, 100GHz and 200GHz Thermal/Athermal AWG. The Athermal AWG are fully qualified according to Telcordia reliability assurance requirements for fiber optic and opto-electronic components (GR-1221-CORE/UNC, Generic Reliability Assurance Requirements for Fiber Optic Branching Components, and Telcordia TR-NWT-000468, Reliability Assurance Practices for Opto-electronic Devices).
Features
50, 100, and 200 GHz channel spacing available;
Low insertion loss and high isolation
16 - 96 channels
Available in MUX and DMUX configurations
Established silica-on-silicon
Telcordia GR-1221-CORE compliant
Low PDL
Low chromatic dispersion
Requires no electrical power
Usage
DWDM transmission
Wavelength Routing
Optical add/drop multiplexing
Technical Data
40ch Gaussian Athermal AWG Specification
| Parameters | Specs | Units | ||
| Min | Typ | Max | ||
| Number of Channels | 40 | |||
| Number Channel Spacing | 100 | GHz | ||
| Center Wavelength | C -band | nm | ||
| Clear Channel Passband | ±12.5 | GHz | ||
| Wavelength Stability | ±0.005 | nm | ||
| -1 dB Channel Bandwidth | 0.24 | nm | ||
| -3 dB Channel Bandwidth | 0.43 | nm | ||
| Optical Insertion Loss at ITU grid | 4.5 | 6.0 | dB | |
| Adjacent Channel Isolation | 25 | dB | ||
| Non-Adjacent, Channel Isolation | 29 | dB | ||
| Total Channel Isolation | 22 | dB | ||
| Insertion Loss Uniformity | 1.5 | dB | ||
| Directivity(Mux Only) | 40 | dB | ||
| Insertion Loss Ripple | 1.2 | dB | ||
| Optical Return loss | 40 | dB | ||
| PDL/Polarization Dependent Loss in Clear Channel Band | 0.3 | 0.5 | dB | |
| Polarization Mode Dispersion | 0.5 | ps | ||
| Maximum Optical Power | 23 | mW | ||
| MUX/DEMUX input/ output Monitoring range | -35 | +23 | dB/℃ | |
| Operating Temperature | -5 | +25 | +65 | ℃ |
| Operating Humidity | 5 | 95 | %RH | |
| Storage Temperature | -40 | +85 | ℃ | |
| Storage Humidity | 5 | 95 | %RH | |
| Package Size | L120×W75×H12.7 | mm | ||
| Size between screws | 110 x 60 | mm | ||
| AWG | X | XX | X | XXX | X | X | X | XX |
| Band | Number of Channels | Spacing | 1st Channel | Filter Shape | Package | Fiber Length | In/Out Connector | |
| C=C-Band | 16=16-CH | 1=100G | C60=C60 | G=Gaussian | M=Module | 1=0.5m | 0=None | |
| L=L-Band | 32=32-CH | 2=200G | H59=H59 | B=Broad Gaussian | R=Rack | 2=1m | 1=FC/APC | |
| D=C+L-Band | 40=40-CH | 5=50G | C59=C59 | F=Flat Top | X=Special | 3=1.5m | 2=FC/PC | |
| X=Customize | 48=48-CH | X=Special | H58=H58 | 4=2m | 3=SC/APC | |||
| XX=Special | XXX=special | 5=2.5m | 4=SC/PC | |||||
| 6=3m | 5=LC/APC | |||||||
| S=Specify | 6=LC/PC | |||||||
| 7=ST/UPC | ||||||||
| S=Specify |

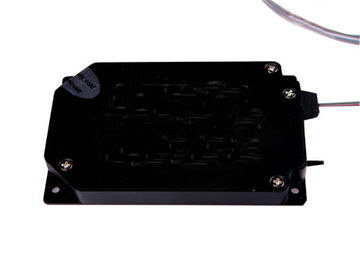

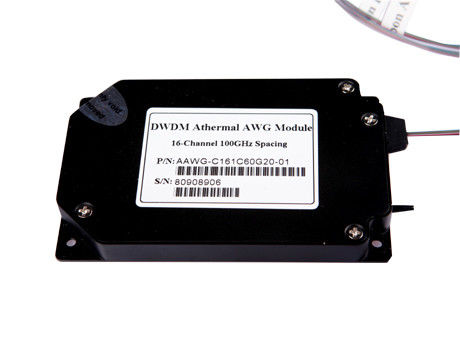

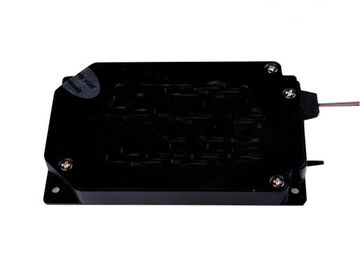

Related Pictures:
