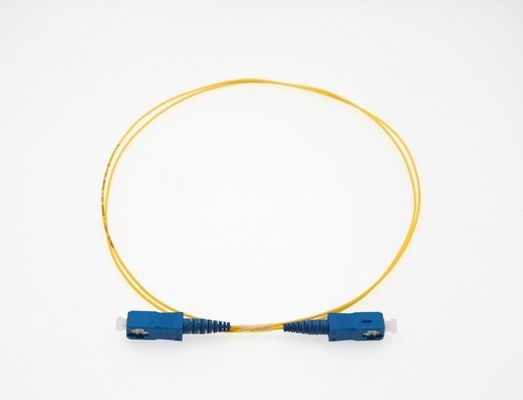

1.2mm Fiber Patch Cord Connectors

1.2mm Fiber Patch Cord Connectors
1.2mm Fiber Patch Cord Connectors 1.2mm Fiber Patch Cord Connectors 1.2mm Fiber Patch Cord Connectors

Large Image :  1.2mm Fiber Patch Cord Connectors

Product Details:
Place of Origin: China
Brand Name: ANC
Certification: RoHS
Model Number: LC
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: please ask
Packaging Details: 100pcs/bag
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 30000pcs per day

1.2mm Fiber Patch Cord Connectors

Description
Housing Color: Blue, Beige, Green, Aqua, Violet Or Customized Boot Color: White, Blue, Green, Aqua, Violet, Red, Black Or Customized
Boot Type: Short Boot For 1.2mm Cable Housing Material: PEI
Ferrule Concentricity: <0.5um Or <1.0um Or Customized Type: Simplex, Duplex Optional
High Light:

1.2mm Fiber Patch Cord Connectors

,

sma fiber optic connector

,

LC/PC OM3 Fiber Patch Cord Connectors

1.2mm LC Fiber Optic Connector



Description



1.2mm LC Fiber Optic Connectors manufactured by ANC International Co., Limited are much smaller in size compared to 2.0mm LC fiber optic connectors, but they are mechanically and optically intermateable with industry standard LC connectors and adapters and conform to applicable TIA/EIA, IEC, and Telcordia specifications. These 1.2mm LC Connectors help support the growing trend of Micro-cabling and high density applications for next generation networks.  1.2mm LC Cable Assemblies reduce congestion in trays and racks. The smaller diameter cable allows for better airflow while the small form factor LC connector allows high panel densities. 1.2mm patch cords require half the space of traditional 1.6mm patch cords and a third of the space of traditional 2.0 mm patch cords. In environments where space constraints and cable routing prove most challenging, the 1.2 mm LC connectors and patch cords offer the necessary flexibility and quality to realize significant labor and cost savings for service providers. ANC offers 1.2mm fiber patchcord as one of the effective solution to resolve cabling congestion problem, it is particularly suitable for use in high-density patching environments.

ANC can offer various colors of 1.2mm fiber optic connector in SC, LC, ST types



Specification



Small form factor LC connector enables high panel densities

Easy to handle, save space

Compliant to Telcordia, EIA/TIA and IEC standards

0.5um, 1.0um concentricity SM ceramic ferrule optional

LC Fibre Connector Type: SM LC/PC, SM LC/APC, MM LC/PC, MM LC/PC OM3 , OM4 LC connector available

LC Connector Boot Type: for 1.2mm cable

LC Connector Color: Blue, Green, Beige, etc.

Boot Length:

Boot Material:



Features



Good concentricity of LC ceramic ferrule

Increase panel density with small size

RoHS compliant for all LC connector material



Usage



Carrier networks

Data Centers

LAN, FTTX

Cross-connect applications



Technical Data



Parameter Unit LC, SC, FC, ST, E2000, MU, LX.5
SM MM
UPC APC PC
Insertion Loss (Typical) dB ≤ 0.2 ≤ 0.2 ≤ 0.2
Return Loss dB ≥ 50 ≥ 60 ≥ 30
Exchangeability dB ≤ 0.2
Repeatability dB ≤ 0.2
Durability Time ≥ 1000
Operating Temperature -40 ~ 75
Storage Temperature -40 ~ 85



Related Pictures

1.2mm Fiber Patch Cord Connectors 0

1.2mm Fiber Patch Cord Connectors 1
