850nm Cisco Fiber Optic Transceiver

850nm Cisco Fiber Optic Transceiver
850nm Cisco Fiber Optic Transceiver 850nm Cisco Fiber Optic Transceiver 850nm Cisco Fiber Optic Transceiver 850nm Cisco Fiber Optic Transceiver

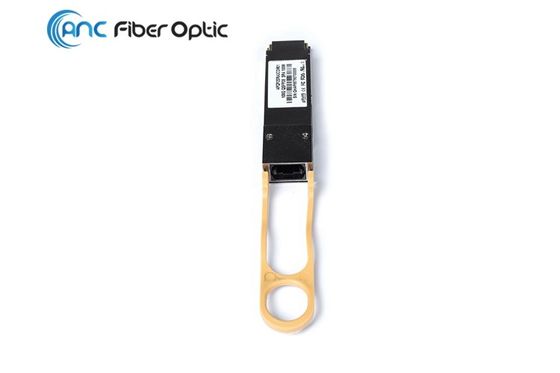

Large Image :  850nm Cisco Fiber Optic Transceiver

Product Details:
Place of Origin: China
Brand Name: ANC or customized
Certification: RoHS, CE, FCC
Model Number: 100G QSFP28 SR4
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: please ask
Packaging Details: 10pcs/box or 1pc/box
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs/day

850nm Cisco Fiber Optic Transceiver

Max Cable Distance: 70m@OM3; 100m@OM4 Wavelength: 850nm
Rate: 103.1 Gbps Connector: MPO MTP-12
Optical Component: VCSEL Compatible: Cisco, HP, Alcatel Lucent, Juniper, Brocade Or Customized
High Light:

QSFP28 optical transceiver module


QSFP28 Fiber Optic Transceiver


850nm Cisco Fiber Optic Transceiver

MPO 100m Fiber Transceiver Module Cisco 100G Base SR4 QSFP28 MMF 850nm




Cisco Compatible 100GBase SR4 QSFP28 MMF 850nm MPO 100m Transceiver Module manufactured by ANC International Co., Limited is a parallel 100Gb/s Quad Small Form-factor Pluggable (QSFP28) optical module. It provides increased port density and total system cost savings. The QSFP28 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 25Gb/s operation for an aggregate data rate of 100Gb/s on 100 meters of OM4 multi-mode fiber.
An optical fiber ribbon cable with an MTP/MPO connector can be plugged into the QSFP28 module receptacle. Proper alignment is ensured by the guide pins inside the receptacle. The cable usually cannot be twisted for proper channel to channel alignment. Electrical connection is achieved through an MSA-compliant 38-pin edge type connector.
The module operates by a single +3.3V power supply. LVCMOS/LVTTL global control signals, such as Module Present, Reset, Interrupt and Low Power Mode, are available with the modules. A 2-wire serial interface is available to send and receive more complex control signals, and to receive digital diagnostic information. Individual channels can be addressed and unused channels can be shut down for maximum design flexibility.
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module offers very high functionality and feature integration, accessible via a two-wire serial interface.




4 independent full-duplex channels
Up to 28Gb/s data rate per channel
QSFP28 MSA compliant
Compliant to IEEE 802.3bm 100GBASE-SR4
Up to 100m OM4 MMF transmission
Operating case temperature: 0 to 70℃
Single 3.3V power supply
Maximum power consumption 2.5W
MTP/MPO optical connector
RoHS-6 compliant




Rack to Rack
Data Center
Infiniband QDR, DDR and SDR
100G Ethernet


Optical Characteristics (TOP=25°C, Vcc=3.3 Volts)

Parameter Symbol Min Typical Max Units Notes
Center Wavelength λC 840 850 860 nm
RMS Spectral Width ∆λrms     0.6 nm
Average Launch Power, each Lane   -8.4   2.4 dBm
Optical Modulation Amplitude (OMA), each Lane OMA -6.4   3 dBm 1
Difference in Launch Power between any Two Lanes (OMA) Ptx,diff     4 dB
Launch Power in OMA minus TDEC, each Lane   -7.3     dBm
Transmitter and Dispersion Eye Closure (TDEC), each Lane       4.3 dB
Extinction Ratio ER 2     dB
Optical Return Loss Tolerance TOL     12 dB
Encircled Flux   ≥ 86% at 19um; ≤ 30% at 4.5um
Transmitter Eye Mask Definition {X1, X2, X3, Y1, Y2, Y3}, 5×10–5 hits/sample   {0.3,0.38,0.45,0.35,0.41,0.5}   2
Average Launch Power OFF Transmitter, each Lane Poff     -30 dBm
Center Wavelength λC 840 850 860 nm
Damage Threshold, each Lane THd 3.4     dBm 3
Average Receive Power, each Lane   -10.3   2.4 dBm
Receiver Reflectance       -12 dB
Receive Power (OMA), each Lane       3 dBm
Receiver Sensitivity (OMA), each Lane SEN     -9.2 dBm
Stressed Receiver Sensitivity (OMA), each Lane       -5.2 dBm 4
LOS Assert LOSA -30     dBm
LOS Deassert LOSD     -12 dBm
LOS Hysteresis LOSH 0.5     dB

1. Even if the TDP < 0.9 dB, the OMA min must exceed the minimum value specified here.
2. See Figure 5 below.
3.The receiver shall be able to tolerate, without damage, continuous exposure to a modulated optical input signal having this power level on one lane. The receiver does not have to operate correctly at this input power.
4.Measured with conformance test signal at receiver input for BER = 1x10-12.
