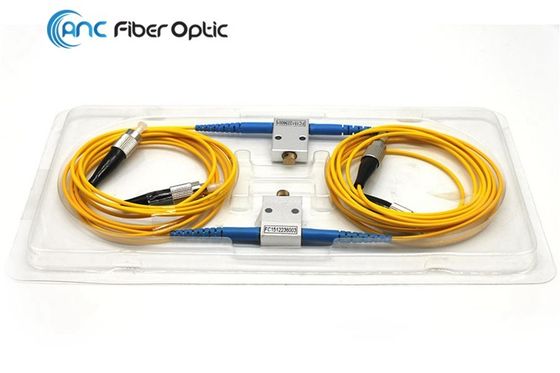

60dB Variable Fiber Optic Attenuator

60dB Variable Fiber Optic Attenuator
60dB Variable Fiber Optic Attenuator 60dB Variable Fiber Optic Attenuator 60dB Variable Fiber Optic Attenuator 60dB Variable Fiber Optic Attenuator

Large Image :  60dB Variable Fiber Optic Attenuator

Product Details:
Place of Origin: China
Brand Name: ANC
Certification: RoHS
Model Number: Collimator Variable Attenuator
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: please ask
Packaging Details: 2pcs per box
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per day

60dB Variable Fiber Optic Attenuator

Attenuation: 0.6~60dB Adjustable VOA Fiber Type: SM, HI1060, OM1, OM2, OM3 Or Customized
Connector: SC, LC, SCAPC, FC, FCAPC Or Customized Cable Diameter: 2.0mm Or 3.0mm Or Customized
Cable Length: 1Meter Or Customized Adjustment Type: Screw Adjust Or Hand Adjust Optional
High Light:

HI1060 Fiber Optic Attenuator


0.6db optical attenuator


60dB Variable Fiber Optic Attenuator

SM MM Collimator Variable Optical Attenuator With SC LC FC Connectors




0.6~60dB SM MM Collimator Variable Optical Attenuator with SC LC FC Connectors manufactured by ANC International Co., Limited utilizes miniature collimator structures to achieve continuous, accurate and variable optical attenuation in a wide spectrum. It can achieve 0.6dB to 60dB attenuation with a precision of 0.1dB. This Collimator variable optical attenuator (VOA) is a fiber optic attenuator that is available in Single mode, Multimode 62.5 and Multimode 50µm. These attenuators can be terminated with any connector option including, SC, SC/APC, ST, ST/APC, FC, FC/APC, LC, LC/APC and E2000. This is useful tool for the optical components power adjustment and systems test.




Collimator based variable optical attenuator, compact size (26x18x8mm)

Wide operation wavelength

High precision

Low excess loss

Two adjustment types: by handle or by screwdriver



Fiber communication on system test
Optical passive component test
Optics lab use




Parameter 1310 1550 1310/1550 Dual window 850, 1310
Wavelength (nm) 1310 ± 40 1550 ± 40 1310 ± 40 & 1550 ± 40 850± 40 or 1310 ± 40
Attenuation range (dB) 0.6 ~ 60 0.6 ~ 60 0.8 ~ 60 0.8 ~ 40
Original loss (dB) ≤0.6 ≤0.6 ≤0.8 ≤0.8
Return loss (dB) ≥ 50 ≥ 30
Adjustment Precision (dB) 0.02
Fiber type SMF-28e 50/125 or 62.5/125 multi-mode
PDL (dB) ≤0.15
Dimensions (mm) 26×18×8
Operating temperature (℃) 0 ~ +70
Storage temperature (℃) -40 ~ +85
60dB Variable Fiber Optic Attenuator 0
