Product Details:
|
| Connector A: | 12F MPO Female Or Customized | Connector B: | 12F MPO Female Or Customized |
|---|---|---|---|
| Pin: | With Or Without Optional | Insertion Loss: | <0.2dB (typical); <0.35dB (Maximum) |
| Fiber Type: | SM, OM3, OM4 Customized | Polarity: | Type A Or B Or Customized |
| High Light: | mpo patch cable,mpo trunk cable |
||

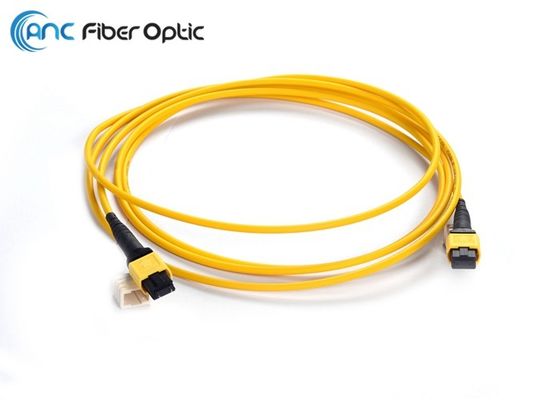

Low Loss SM MPO To MPO Truck Cable Assembly 8 Fiber Type A Or B Polarity
Description:
Low loss SM 12 Fiber 24 Fiber MPO to MPO Truck Cable Assembly manufactured by ANC International Co., Limited provides lower insertion loss than standard MPO MTP cable assembly. Optical insertion loss budgets are now one of the top concerns among data center managers, especially in today’s 40G and 100G backbone switch-to-switch deployments for networking and storage area networks (SANs). Staying within the loss budget is essential for ensuring that optical data signals can properly transmit from one switch to another without high bit error rates and performance degradation.
The MPO MTP low loss patch cord uses angle polished connector to reduce back reflection and minimize the insertion loss of the fiber connector. The cable can be 3mm round jacket or flat ribbon jacket or bare ribbon cable; The fiber can be SM, OM3, OM4 or customized;
Features:
Low loss for multiple connection optional;
SM (9/125 G657A1), OM3, OM4, OM5 fiber optional;
With pin or without pin optional
8Fiber, 12Fiber, 24Fiber MPO MTP Connectors optional;
High density connections between network equipment in telecommunication rooms;
Type A or Type B or Type C optional;
Easy installation and removal with push-pull latching
LSZH, OFNR, OFNP Jacket optional;
Applications:
Data Center
LAN, FTTX
CATV
Optical Performance:
| MPO/MTP | SM Standard | SM Low Loss | MM Standard | MM Low Loss | |
| Insertion Loss | Typical | 0.35dB | 0.20dB | 0.35dB | 0.20dB |
| Max | 0.75dB | 0.35dB | 0.65dB | 0.35dB | |
| Return Loss | APC≧50dB | ≧25dB | ≧35dB | ||
| PC≧40dB | |||||
| Durability | ≤0.3dB (change 500matings) | ≤0.3dB (change 1000matings) | |||
| Exchangeability | ≤0.3dB (Connector randomly) | ||||
| Tensile Strength | ≤0.3dB (Max 66N) | ||||
| Vibration | ≤0.3dB (10~55Hz) | ||||
| Operation Temperature | -40℃ ~ +75℃ | ||||
Interferemeter Test:
| MPO/MTP | Dimension MT |
| Radius of Curvature | X≧2000mm; Y≧50mm |
| Fiber Height | 1000~4000nm |
| Endface Angle | X±0.3°; Y±0.3° |
| Core Dip | -300nm ~ 300nm |
Choose Your Polarity
Type A - Straight: Straight-through polarity is typically for connecting patch panels. They are wired in a mirrored configuration, going from Pin 1 on one connector end to Pin 1 on the opposite end, etc.
Type B - Rollover: Rollover polarity is used primarily for connecting to switches and transceivers in 40Gb applications. In a 12-strand rollover polarity, the cable is wired from Pin 1 on one connector end to Pin 12 on the opposite end. Then 2 to 11, and so forth.
Type C - Flipped: Pair-Flipped polarity is typically used in cassette-to-cassette applications. Pin 1 on one end goes to Pin 2 on the opposite end, and 2 to 1, 3 to 4, 4 to 3, and so on. you can select your desired polarity before ordering.
