Product Details:
|
| Attenuation Value: | Any DB Between 1~20dB | LC Thickness: | Slim Design 5.8mm |
|---|---|---|---|
| Housing Color: | Blue, Green, Beige, Aqua | Housing Design: | Single Clip Or Dual Clip Or Customized |
| Test Wavelength: | 1310nm, 1550nm | I.L.: | 1-5dB,±0.5dB; 5dB-20dB, ±10% |
| R.L.: | UPC≥50dB | Optical Input Power: | ≤200mw |
| Highlight: | 1550nm fixed optical attenuator,1310nm Fiber Optic Attenuator,1550nm Fiber Optic Attenuator |
||

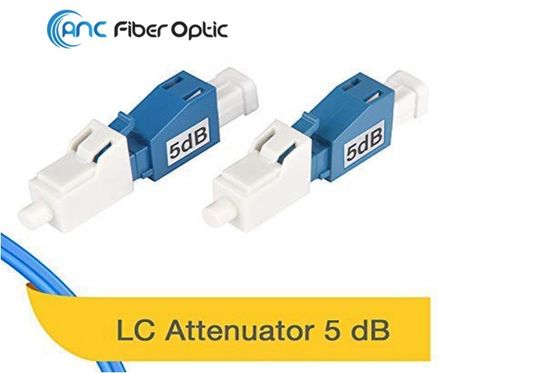

1dB 3dB 5dB 7dB 10dB 10 Db Attenuator SM LC PC Single Clip Or Dual Clip
Description:
1dB, 3dB, 5dB, 7dB,10dB, 15dB, 20dB SM LC/PC Male-female Fiber Optic Attenuator manufactured by ANC International Co., Limited is used to reduce signal power in fiber optic links by a fixed or variable loss. It can be mainly divided into fixed bulk head (female-female) fiber optic attenuator, fixed plug-in (female-male) fiber optic attenuator and variable fiber optic attenuator. ANC adopts mature attenuation fiber technology, and is able to provide high quality fiber optic attenuators at favorable price and fast delivery. In ANC, single mode and multimode 62.5/125 or 50/125 fiber optic attenuators are available. The attenuation range of such fiber attenuator can be from 1dB to 25dB at 1dB increment. The attenuator type has but not limit to SC/UPC, SC/APC , FC/UPC, FC/APC, LC/UPC, LC/APC, ST/PC, MU fiber optic attenuators.
Features:
Based on IEC 60869
Environmentally Stable and Reliable
Accurate Size
High Directivity
Excellent Return Loss
Application:
Telecommunication networks
CATV networks
Optical communication system
Date networks
Specification:
| Type | SM | MM |
| Operation Wavelength | 1260nm～1650nm | |
| Tested Wavelength | 1310nm/1550nm | 850nm |
| Fiber Type | Single mode 9/125 | Multimode 50/125 or 62.5/125 or OM3 |
| Attenuation | 1-5dB,±0.5dB; | 1-5dB, ±0.5dB |
| 5dB-20dB, ±10% | 5dB-20dB, ±10% | |
| Return Loss | UPC≥50dB; APC ≥65dB | PC≥35dB |
| Optical Input Power | ≤200mw | |
| Operating Temp. Range | -40℃ ～ 85℃ | |
