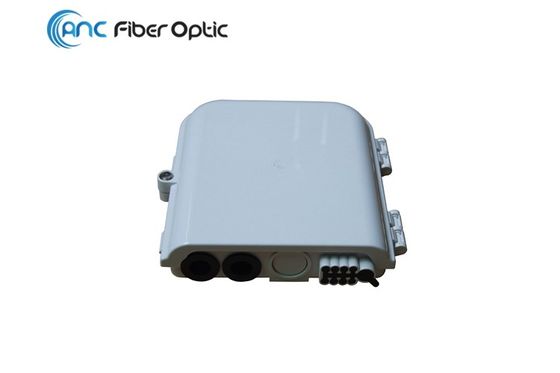

Outdoor Wall Mount Fiber Optic Termination Boxes 8 Port for 1x4 1x8 PLC Splitter

Outdoor Wall Mount Fiber Optic Termination Boxes 8 Port for 1x4 1x8 PLC Splitter
Outdoor Wall Mount Fiber Optic Termination Boxes 8 Port for 1x4 1x8 PLC Splitter Outdoor Wall Mount Fiber Optic Termination Boxes 8 Port for 1x4 1x8 PLC Splitter Outdoor Wall Mount Fiber Optic Termination Boxes 8 Port for 1x4 1x8 PLC Splitter Outdoor Wall Mount Fiber Optic Termination Boxes 8 Port for 1x4 1x8 PLC Splitter

Large Image :  Outdoor Wall Mount Fiber Optic Termination Boxes 8 Port for 1x4 1x8 PLC Splitter

Product Details:
Place of Origin: China
Brand Name: ANC
Certification: RoHS
Model Number: OTB-P007
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: please ask
Packaging Details: 1pc/box
Delivery Time: 5-7working days
Payment Terms: T/T, Western Union
Supply Ability: 50000pcs per month

Outdoor Wall Mount Fiber Optic Termination Boxes 8 Port for 1x4 1x8 PLC Splitter

Description
No. Of Adapter: 8 Port Material: ABS
Suitable Adapter: SC Simplex Or LC Duplex IP Protection: IP65
Accommodate PLC: 1x4 Or 1x8 PLC Usage: Outdoor Wall Mount Or Pole Mount
High Light:

fiber optic junction box

,

fiber optic termination cabinet

Outdoor Wall Mount Fiber Optic Termination Boxes 8 Port for 1x4 1x8 PLC Splitter



Description



8 Port Outdoor Wall Mount Fiber Optic Termination Box for 1x4 1x8 PLC Splitter manufactured by ANC International Co., Limited is applied for FTTH, FTTO, FTTD, etc. The termination box is light in weight and compact design, and it is used for outdoor wall mount or pole mount application. These termination boxes are used for splicing and connecting of small capacity PLC Splitters, fiber cables and pigtails, usually less than 12 fibers. The adapter plate is mainly SC or DLC type. They have the subsequent functions of mechanical splice, fusion splice, distributions, etc.



Features:



Industry Standard User Interface, with high impact plastic;
Can max contain 8 ports FTTH Drop cable;
Different cable port optional to satisfy different usage.

Can contain 1*4 or 1*8 PLC splitter;
Function of anti-UV, shock resistance and waterproof;



Applications



FTTX applications,

Datacenter

LAN & WAN projects



Specifications



Model Dimension (mm) Material Adapter Port Splice Tray Max. Capacity Cable Port Application & Features
OTB-P007A 206.8 x 230.3 x 52.7 ABS 8 SC Simplex 1 tray 8FO 8 FO 2 PG+ 9 Ports Outdoor wall mount; IP65; Pole mount (optional); suitable for PLC 1x4, 1x8 steel tube splitter
OTB-P007B 206.8 x 213.4 x 52.7 1 oval + 9 ports
OTB-P007C 206.8 x 216 x 52.7 2 rubber+ 9 ports
OTB-P007D 206.8 x 230.3 x 52.7 2 PG + 8 ports
OTB-P007E 206.8 x 215.8 x 52.7 1 oval + 8 ports
OTB-P007F 206.8 x 216 x 52.7 2 rubber + 8 ports


Outdoor Wall Mount Fiber Optic Termination Boxes 8 Port for 1x4 1x8 PLC Splitter 0

Outdoor Wall Mount Fiber Optic Termination Boxes 8 Port for 1x4 1x8 PLC Splitter 1
