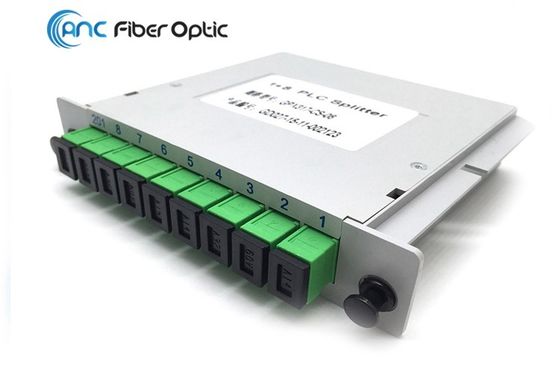

LGX Fiber Optic Splitter Plc 1x8

LGX Fiber Optic Splitter Plc 1x8
LGX Fiber Optic Splitter Plc 1x8 LGX Fiber Optic Splitter Plc 1x8 LGX Fiber Optic Splitter Plc 1x8 LGX Fiber Optic Splitter Plc 1x8

Large Image :  LGX Fiber Optic Splitter Plc 1x8

Product Details:
Place of Origin: China
Brand Name: ANC or customized
Certification: RoHS
Model Number: 1x8 Cassette PLC
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: please ask
Packaging Details: 10pcs/cartons
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union
Supply Ability: 100,000pcs per month

LGX Fiber Optic Splitter Plc 1x8

Input Tube Color: White Or Customized Output Tube Color: White Or Customized
Adapter: Blue For SCPC; Green For SCAPC Fiber: G657A1 Or Customized
Packing Size: Cassette LGX Connector: SC, SCAPC Or Customized
High Light:

1x8 Cassette Fiber Optic Splitter


Splitter Plc 1x8


LGX PLC Fiber Optic Splitter

SC SCAPC Connector LGX Fiber Optic Splitter 1x8 Cassette Type PLC Splitter




1x8 Cassette Type LGX Fiber Optic PLC Splitters With SC SCAPC Connector manufactured by ANC International Co., Limited are fabricated using silica optical waveguide technology to distribute optical signals accurately and evenly with minimal loss providing a low cost light distribution solution with small form factor and high reliability. This 1x8 cassette type PLC Splitters are commonly used to distribute optical signals from Central Office (CO) to multiple premise locations in Fiber to the point (FTTx) deployments and other passive optical networks (e.g., EPON, GPON, BPON).

ANC can produce full range of PLC splitters, such as 1×2, 1×4, 1×8, 1×16, 1×32, 1×64, 2×4, 2×8, 2×16, 2×32, 2×64 with following package

Bare fiber series

Mini loose tube package

ABS Module type

LGX box type

Rack and Wall Mount patch panel for PON application.

Inline fiber optic splice closure type

All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.




Fits any LGX size panel and many popular panels
Screw-socket design firmly fixes the adapter on the panel
Silk screened port number for easy identification
Eliminate the need for splicing machines and skilled personnel for deployment
Connector type: SC/APC, SC or customized
Telcordia GR-1221 and 1209 compliant
Apply to passive optical network

Insertion Loss: ≤10.7 dB
Polarization Dependent Loss (PDL): ≤0.3 dB
Return Loss: ≥55 dB
Uniformity: ≤1.0 dB
Directivity: ≥55 dB




FTTX Systems

PON Networks

CATV Links

Optical Signal Distribution




Telcordia GR-1209-CORE-2001

Telcordia GR-1221-CORE-1999



Technical Data


1xN Splitter

Parameters 1×2 1×4 1×8 1×16 1×32 1×64 1×128
Operating Wavelength 1260~1650nm
Fiber Type Default G657A1 or customer specified

Max. Insertion Loss

( P/S Grade ) (dB)

3.8 /4.0 7.2/7.4 10.3/10.5 13.5/13.7 16.5/16.9 20.5/21.0 23.8/24.2
Max. Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.0 2.5
Max. Polarization Dependent Loss (dB) 0.1 0.1 0.1 0.2 0.25 0.3 0.4
Return Loss (dB) ≦-55
Directivity (dB) ≦-55

Temperature Stability


≦0.3 ≦0.5
Operating Temperature -40~85°C
Storage Temperature -40~85°C

* S/P : ‘S’ means ‘Standard Grade’, and, ‘P’ means ‘Premium Grade

* IL values are measured @1310&1550nm

* IL, PDL, Uniformity values are for “Without connectors”


Related Product Pictures

LGX Fiber Optic Splitter Plc 1x8 0
