Product Details:
|
| Port Type: | 1xRJ45 To 1xSFP+ | RJ45 Rate: | 10G/5G/2.5G/1GBase-T |
|---|---|---|---|
| SFP+ Rate: | 10G | Dimension: | 95x70x26mm |
| Power Consumption: | Max 5W | Operating Voltage: | 12VDC |
| High Light: | gigabit fiber media converter,fiber optic cable converter |
||

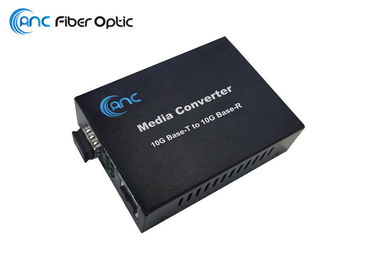

10 Gigabit Copper Fiber Optic Media Converter 10G Base T To 10G Base R
Description
10G Base-T to 10G Base-R 10 Gigabit Copper to Fiber Media Converter manufactured by ANC International Co., Limited is equipped with one 10G/5G/2.5G/1G/100BASE-T auto-negotiation port and one 10GBASE-X SFP+ slot. It supports 10Gigabit Ethernet media conversion from copper 10GBASE-T to fiber multi-mode or single-mode, utilizing 10GBASE-SR or 10GBASE-LR SFP+ transceiver. When installed in the SFP+ slot, it can be uses to extend distances to servers, switches and patch panels. The deployment distance can be extended anywhere from 300 meters (multi-mode) to up to 60 kilometers (single-mode) depending on the SFP module selected. The 10G Copper to Fiber Media Converter is designed for use in network environments where ultra-high bandwidth provided by 10G Ethernet is required.
10G Base-T to 10G Base-R Media Converter supports two types media for network connection such as 10GBase-T and 10GBase-FX. The bridge media converter is designed with a 10Gbase Ethernet PHY chip that connects two types segments operation smoothly. This converter can be used as standalone unit or as slide-in module to the 19” converter rack Chassis for use at a central wiring closet.
Features
Smoothly converts 10GBASE-T to 10GBASE-R
Designed with a 10GBASE Ethernet PHY chip that easily connects two types of segments
12V DC power supply
RJ45 port type and a SFP+ slot
Standards include 1000BASE-T, 2.5GBASE-T, 5GBASE-T, 10GBASE-T, 1000BASE-X, 2500BASE-X, 5GBASE-R and 10GBASE-R
Standalone media converter (not to be used with chassis)
Works as a mode converter, not a rate converter.
Applications
10G Copper to Fiber Application
How to install the media converter
For as a standalone unit:
→ Verify the DC adapter conforms to your country DC power requirement and insert the power plug
→ Connect the media cable for network connection
For as a slide-in unit:
→ The slide-in Media Converter and Converter Rack Chassis should supplied only from the same source, both Media Converter Rack Chassis are built to match each other at dimension, DC jack, DC receptacle and power safety.
→ Turn off the 19” converter rack power
→ Locate +12V DC power jack on converter back, carefully slide in and plug to 19” rack +12V DC power receptacle
→ Connect the media cable for network connection
→ Turn on the converter rack power, the Power LED will light up
Technical Parameters
10G Base-T to 10G Base-R 10 Gigabit Copper to Fiber Media Converter
| Standards | 1000Base-T, 2.5GBase-T, 5Gbase-T, 10Gbase-T 1000Base-X, 2500Base-X, 5GBase-R , 10GBase-R |
| Media Supported | 1000Base-T: Cat5 UTP/STP. MAX 100m; 2.5GBase-T: Cat5e UTP/STP. MAX 50m; 5GBase-T: Cat5e UTP/STP. MAX 50m; 10G Base-T: Cat6a UTP/STP. MAX 50m; |
| Port Type | RJ45, SFP Slot |
| Work Mode | 1000Base-T to 1000Base-X 2.5GBase-T to 2500Base-X 5Gbase-T to 5GBase-R 10Gbase-T to 10GBase-R |
| Power Supply | 12V DC |
| Power consumption | MAX 5W |
| Operation Tempera tore | 0℃ to 55℃ |
| Relative Humidity | 5% to 80% (non-condensation) |
