Product Details:
|
| Fiber Fusion Capacity: | 12Core Fiber Optic Splice Tray | Color: | White Or Black |
|---|---|---|---|
| Material: | ABS | Splice Holder: | Straight Or Bent Holder Optional |
| Rate: | Halogen Free And Flame-retardant (UL94 V-0) | Dimension: | 154.5 X 92 X 9.1mm |
| Highlight: | UL94 V-0 fiber optic junction boxes,UL94 V-0 fiber optic termination boxes,12Core Fiber Optic Splice Tray |
||

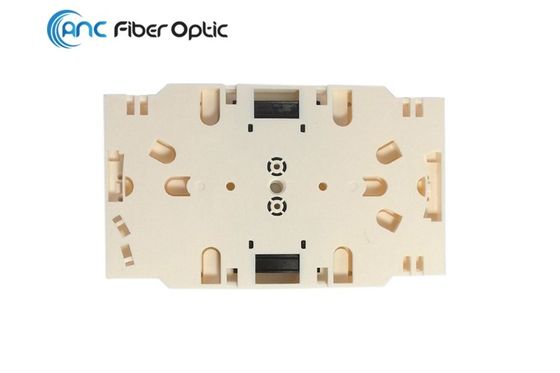

12 Core Fiber Optic Termination Boxes Fiber Fusion Splice Tray OST-011
Description
12 Core Fiber Fusion Splice Tray OST-011 Manufactured by ANC International Co., Limited is used to provide a safe routing and easy-to-manage environment for the fragile optical fiber splices. This splice tray comes with straight or bent 12 core fiber holder. The splice tray can be stacked and is suitable for most types of patch panels and cabinets. Fiber optic splice trays are used as an important accessory for fiber cable management items. Such as fiber optic terminal box, fiber optic splice closure, ftth terminal box, cabinet, etc. Each tray provides space for mounting fiber splice protectors and excess fiber. The splice tray offers a unique and flexible splice and storage system.
Features:
Can be stacked up to 2 pieces in a 1U high density
Supplied with holders for Splice sleeves
Clear and smart design
Easy to installation
Standard fixing points, center holes for mounting of the tray
Easy repair and maintenance
Halogen free and flame-retardant (UL94 V-0)
With a cover-plate on the tray after fusion
Offers a unique and flexible splice and storage system
Ensures the curvature radius of fiber
Meet to IEC and RoHS Compliant
Applications
Fiber Fusion Splicing
Fiber Optic Patch Panel
Optical Distribution Frame
Fiber Optic Terminal Box
Fiber Optic Splice Closure
Specifications
| Name | Material | Color | Size |
| OST-011 | ABS | White | 154.5 x 92 x 9.1mm |
ANC Splice Tray OST-011 Drawing
