Product Details:
|
| Attenuation Value: | Any DB Between 0~30dB | End Face: | PC Or APC Optional |
|---|---|---|---|
| Type: | Male-Female Or Customized | Test Wavelength: | 1310nm, 1550nm Or Custom |
| I.L.: | 0-5dB,±0.5dB; 5dB-30dB, ±10% | R.L.: | UPC≥50dB; APC≥60dB |
| Fiber Type: | SM Or MM Or Specify | Connector: | FC, SC, LC, ST Or Customized |
| High Light: | single mode fiber attenuator,variable optical attenuator |
||

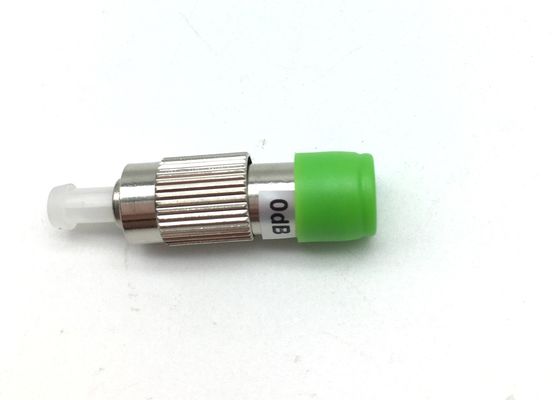

Single Mode FC/UPC Male to FC/APC Female Fiber Optic Attenuator 0dB
Description:
FC/UPC Male to FC/APC Female Fiber Optic Attenuator manufactured by ANC International Co., Limited is a component installed in a fiber optic transmission system that reduces the power in the optical signal. And it is often used to limit the optical power received by the photo detector to within the limits of the optical receiver. The attenuation range of such fiber attenuator can be any dB from 0dB to 30dB at 1dB increment. The attenuator type has but not limit to SC/UPC, SC/APC , FC/UPC, FC/APC, LC/UPC, LC/APC, ST/PC, MU fiber optic attenuators.
Fiber optic attenuators are mainly used in fiber optic to debug optical power performance & optical instrument calibration correction & fiber signal attenuation to ensure the optical power in a stable and desired leve in the link without any changes on its original transmission wave. Doped fiber is used inside to provide low wavelength sensitivity, high stability, high return loss and good reliability.
ANC adopts mature attenuation fiber technology, and is able to provide high quality fiber optic attenuators at favorable price and fast delivery. In ANC, single mode and multimode 62.5/125 or 50/125 fiber optic attenuators are available.
Features:
Accurate tolerance;
Attenuation levels ranging from 0dB to 30dB
Low back reflection
High power endurance
Maximum stability, reliability and flat spectral response
100% IL, RL and visual inspection tested
UPC, APC option；
Good mechanical performance；
Easy to connect/disconnect (Push-Pull)
Application:
Optical system test
FTTH, CATV
High power device test
DWDM
EDFA loop tests and measurements
Specification:
| Type | SM | MM |
| Operation Wavelength | 1260nm～1650nm | |
| Tested Wavelength | 1310nm/1550nm | 850nm |
| Fiber Type | Single mode 9/125 | Multimode 50/125 or 62.5/125 or OM3 |
| Attenuation | 0-5dB,±0.5dB; | 0-5dB, ±0.5dB |
| 5dB-20dB, ±10% | 5dB-20dB, ±10% | |
| Return Loss (dB) | UPC≥50dB; APC ≥60dB | PC ≥ 35dB |
| Optical Input Power | ≤200mw | |
| Operating Temp. Range | -40℃ ～ 85℃ | |
