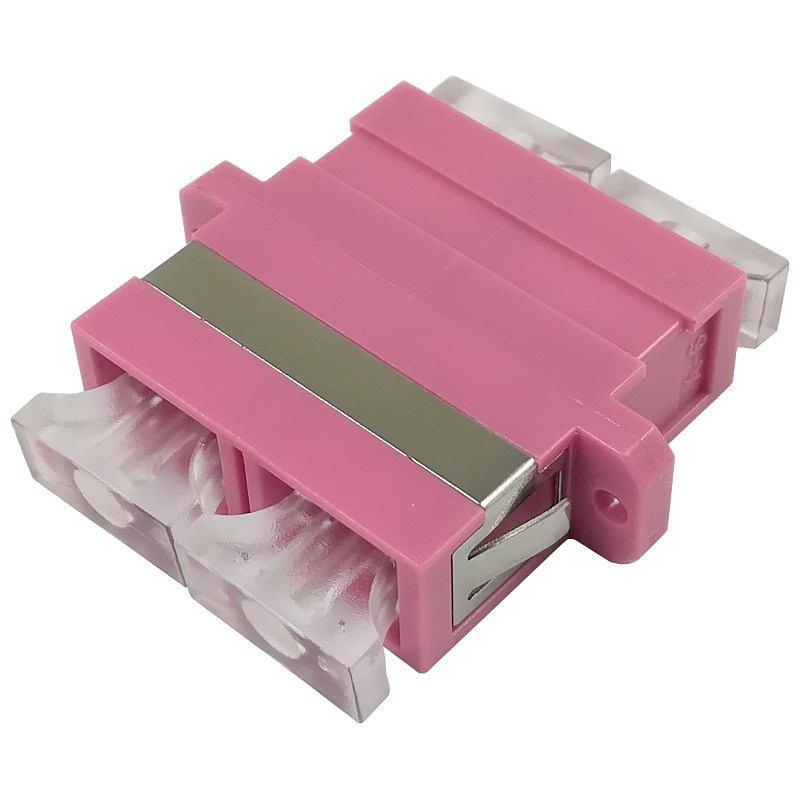

OM4 OM3 SM SC Duplex Fiber Optic Adapters Flanged With Transparent Dust Cap

OM4 OM3 SM SC Duplex Fiber Optic Adapters Flanged With Transparent Dust Cap
OM4 OM3 SM SC Duplex Fiber Optic Adapters Flanged With Transparent Dust Cap OM4 OM3 SM SC Duplex Fiber Optic Adapters Flanged With Transparent Dust Cap OM4 OM3 SM SC Duplex Fiber Optic Adapters Flanged With Transparent Dust Cap OM4 OM3 SM SC Duplex Fiber Optic Adapters Flanged With Transparent Dust Cap OM4 OM3 SM SC Duplex Fiber Optic Adapters Flanged With Transparent Dust Cap

Large Image :  OM4 OM3 SM SC Duplex Fiber Optic Adapters Flanged With Transparent Dust Cap

Product Details:
Place of Origin: China
Brand Name: ANC
Certification: RoHS
Model Number: SC Duplex Adapter
Payment & Shipping Terms:
Minimum Order Quantity: 25pcs
Price: please ask
Packaging Details: 25pcs per box
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 30000pcs per day

OM4 OM3 SM SC Duplex Fiber Optic Adapters Flanged With Transparent Dust Cap

Description
Housing: PC Or PBT Or Customized Sleeve: Ceramic
Insertion Loss: <0.2dB Or Customized Metal Clip: SUS304
Packing: 25pcs/box Or Customized Color: Violet, Aqua, Green, Beige Or Customized
Flange: Flanged Or Customized Dust Cap: Transparent Or Custom
High Light:

fiber optic cable adapter

,

lc duplex adapter

OM4 OM3 SM SC Duplex Fiber Optic Adapters Flanged With Transparent Dust Cap



Description

SC Duplex Fiber Optic Adapter flanged manufactured by ANC International Co., Limited is designed to connect two duplex SC fiber optic cables together. This SC duplex fiber optic adapters have blue color for SM/PC, beige color for MM, green color for SM/APC, aqua color for OM3, violet color for OM4. The dust cap of this SC Duplex adapter can be transparent color or black color or same color as housing. The Duplex SC coupler can be flanged or flangeless style optional. The mounting dimension of this adapter fits standard SC Duplex cutout for adapter plates, patch panels, and wall mounts.

SC Adapters offer a variety of SC simplex and duplex mating adapters, snap mount or screw mount is optional, shutter adapters are also optional. The shuttered adapters are equipped with a spring loaded shutter which automatically closes when a connector is removed from the adapter and shield against exposure to laser radiation and provide some barrier to dust contamination.

ANC supplies a wide range of fiber optic adapters and hybrid adapters, including special male to female hybrid fiber optic adapter. Our fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility.



Specification

Channels- Duplex (2 ports)

Color- Blue for SM/PC, beige for MM, green for SM/APC, aqua for OM3, violet for OM4

Body material- PC or PBT

Alignment sleeve material- Zirconia Ceramic

Mounting- Duplex SC footprint

Insertion Loss (IL)- <0.2dB

With flange or flangeless optional

Customized dust cap color optional

RoHS Compliance

Low insertion loss and good durability



Usage

Optical Fiber Communication System

Cable Television Network

LAN, FTTX

Fiber Optic Access Network and Video Transmission



Parts & Material

Parts Material Remarks
Sleeve Zirconia
Housing PC Flammability UL94 V-0
Dust cap PBT Flammability UL94 V-0
Metal Shutter SUS304



Optical Performance

  Premium Grade Standard Grade
Insertion Loss ≤0.1dB ≤0.2dB
Durability 1000 times 1000 times



Environment and Mechanical

Properties Test condition Compliant Test result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability 1000 Mating, clean every 25 mating. IEC61300-2-2 ≤0.2dB
Temperature Cycling 40ºC to +75ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature humidty cycling 40ºC, 95%, 96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC   ≤0.2dB
Storage Temperature -40ºC to +85ºC   ≤0.2dB



Related Products Pictures

OM4 OM3 SM SC Duplex Fiber Optic Adapters Flanged With Transparent Dust Cap 0

OM4 OM3 SM SC Duplex Fiber Optic Adapters Flanged With Transparent Dust Cap 1

OM4 OM3 SM SC Duplex Fiber Optic Adapters Flanged With Transparent Dust Cap 2

OM4 OM3 SM SC Duplex Fiber Optic Adapters Flanged With Transparent Dust Cap 3
