Product Details:
|
| Connector A: | ODVA SC Or Custom | Connector B: | SC Or ODVA SC Or Custom |
|---|---|---|---|
| Fiber Type: | SM, OM1, OM3, OM4 Or Custom | Cable Diameter: | 4.8mm Or 7.0mm Or Custom |
| Armored: | With Or Without Optional | Insertion Loss: | <0.30dB |
| Return Loss: | >50dB For SM/PC; >60dB For SM/APC | Length: | 5m, 10m, 20m Or Custom |
| High Light: | optical patch cord,fiber optic jumper |
||

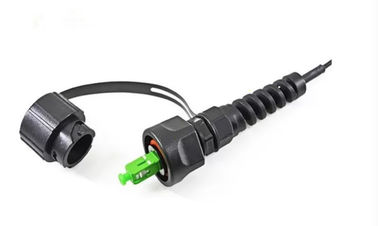

ODVA SC Fiber Optic Patch Cord Outdoor IP67 Simplex or Duplex 10m 30m 50m
Description
Outdoor ODVA SC Fiber Optic Patch Cord manufactured by ANC International Co., Limited is available in both single mode and multimode version, this ODVA SC is a typical outdoor use fiber cable, suitable for different temperature and weather, especially ideal for FTTA and harsh environment use. The ODVA SC fiber optic patch cords are offered with bayonet-locking connectors with low cost rugged plastic shells to provide a quick mating interconnect solution. ANC offers ODVA-LC patch cords, ODVA-SC patch cord, ODVA-MPO patch cords as per customer requests, length from 1Meter to 500Meters. All assemblies come with an ODVA connector on one end and an LC, SC, MPO or ODVA style connector on the other end. The cable core can be simplex, duplex, 4-core, 6-core, 8-core, 12-core or custom.
Features
Both single mode and multimode version optional
One-hand mating
Bayonet style locking mechanical
Low insertion loss and high return loss
OEM and ODM customized production
Applications
Widely used in FTTA & FTTH
For connection between distribution box and RRH
Deployment in Remote Radio Head cell tower applications
Used for 3G 4G base station
BBU, RRU, RRH, LTE
ODVA Fiber Optic Patch Cord Drawing
Other Cable Structure is also optional upon request
Type1: 2×Tight Buffer(0.9mm)+Kevlar+Jacket OD=4.8mm;
Type2: 2×Tight Buffer(0.9mm)+Kevlar+Spiral +Jacket OD=4.8mm
Type3: 0.9mm tight buffer*2 +2.0mm Jacket*2 +2×2.0mm Tube+Jacket OD=7.0mm;
Type4: 0.9mm tight buffer*2 +2.0mm Jacket*2 +2×2.0mm Tube+power cable 0.75M2 *2 Jacket OD=8.5.0mm;
Technical Data
| Parameters | Standard Fiber Cable Assemblies | ||
| Connector | Side-A | ODVA SC Connector or custom | |
| Side-B | DLC(duplex LC),SC,ST,FC,MPO/MTP | ||
| Fiber count | 1F or 2F or 4F......24F | ||
| Fiber Type | SM(G.652D/G.657A) | MM(OM1/OM2/OM3) | |
| Jacket Materials | LSZH/OFNR/PVC/PE | ||
| Ferrule Materials | Ceramic | ||
| Testing Wavelengths | 1310±30/1550±30nm | 850±30/1300±30nm | |
| Insertion Loss(dB) | ≤ 0.3dB | ≤ 0.3dB | |
| Return Loss(dB) | ≥50dB(PC/UPC); ≥60dB(APC) | ≥35dB(PC/UPC) | |
| Exchange ability | ≤ 0.2dB | ||
| Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patchcord | ||
| Operating Temperature (° C) | 10~ + 70 | ||
| Storage Temperature (° C) | -40 ~ +85 | ||
ODVA SC Patch Cord Related Pictures
