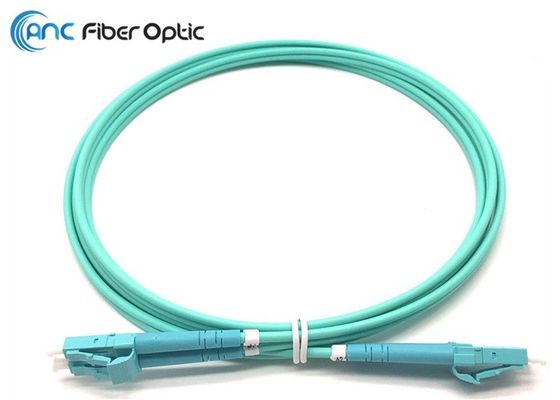

LC To LC Fiber Optic Patch Cord 10G OM3 50/125 Aqua Duplex 2.0mm 3.0mm Custom

Customer Reviews
The sales recommended the MTP cable to connect our new 40G modules for the Cisco switch. She also helped us designed the cabling to ensure the right polarity. We installed the products on our cabinet when we received them, no issues.

—— Stephen G Bavington

The fibre patch cables are working really well and have been installed for quite some time. It is great source of fibre optics for us. When we have anything to order, we will definitely come to you.

—— Michael A Galileo

Good price and keep our quality requirements. Fast delivery. Very serious customer service.

—— Nathan Cerny

These adapters are very cost-effective and of good quality, they have been working reliably from the moment I installed them.

—— Buddy Christ

Fast shipping, excellent quality, good price. We will definitely come back when we have new project.

—— D Langsam

I'm Online Chat Now

LC To LC Fiber Optic Patch Cord 10G OM3 50/125 Aqua Duplex 2.0mm 3.0mm Custom

LC To LC Fiber Optic Patch Cord 10G OM3 50/125 Aqua Duplex 2.0mm 3.0mm Custom
LC To LC Fiber Optic Patch Cord 10G OM3 50/125 Aqua Duplex 2.0mm 3.0mm Custom LC To LC Fiber Optic Patch Cord 10G OM3 50/125 Aqua Duplex 2.0mm 3.0mm Custom LC To LC Fiber Optic Patch Cord 10G OM3 50/125 Aqua Duplex 2.0mm 3.0mm Custom LC To LC Fiber Optic Patch Cord 10G OM3 50/125 Aqua Duplex 2.0mm 3.0mm Custom

Large Image :  LC To LC Fiber Optic Patch Cord 10G OM3 50/125 Aqua Duplex 2.0mm 3.0mm Custom

Product Details:
Place of Origin: China
Brand Name: ANC or customized
Certification: RoHS
Model Number: OM3 LC Duplex
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: please ask
Packaging Details: 1pc per bag
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 36000pcs terminator per day

LC To LC Fiber Optic Patch Cord 10G OM3 50/125 Aqua Duplex 2.0mm 3.0mm Custom

Description
Connector: LC/PC Or Custom Housing Color: Aqua Or Beige Or Custom
Boot Color: Aqua Or Red Or Custom Cable Jacket: LSZH, PVC Optional
Diameter: 1.6mm, 2.0mm, 3.0mm Or Custom Cable Color: Aqua Or Custom
Fiber Type: OM3 50/125 Or Custom Insertion Loss: <0.25dB 100% Test Before Shipping
Return Loss: >35dB For MM/PC Typical Length: 3m, 5m Or Custom
High Light:

optical patch cord

,

fiber optic patch cable

LC to LC Fiber Optic Patch Cord OM3 50/125 Aqua Duplex 2.0mm or 3.0mm 3M 5M



Description

Aqua OM3 50/125 Duplex LC to LC Fiber Optic Patch Cord manufactured by ANC International Co., Limited is specially designed for fast Ethernet, Fiber Channel, Gigabit Ethernet Speeds, data center, premises, educational, LAN, SAN, commercial and Asynchronous Transfer Mode (ATM) applications. It supports video, data and voice services. ANC offers a variety of OM3 multimode fiber patch cables with connector types that range from LC, SC, ST, FC and MTP. ANC provides fiber patch cords suitable for high-speed bandwidths, including OM3 patch cord 50/125, which are optimal for 10Gb network applications. Multi-mode fiber optic patch cords are known as 50/125. This indicates that the interior of the cable, is a glass or plastic core with a diameter of 50 microns. The 125 indicates the outer cladding layer of micron. Boot style are available in standard, duplex and uniboot, and fiber cables come in aqua. Common connectors are LC-LC, SC-SC, LC-SC, ST-ST and MTP-MTP. Our 50/125 fiber cable can support 10 Gigabit Ethernet.

Our company has more than 100 workers in Shenzhen to produce 36000pcs terminators per day. Our skilled workers and quality control department work closely together to guarantee every piece of our fiber optic patch cord is excellent stable quality and fine looking.

In LC family product, we can produce Standard LC patch cord, grade B LC patch cord, LC uniboot Patch Cord; LC Switchable Patch cord, LC Armored Patch Cord, LC IP67 Patch Cord, LC Pigtail, Multi-fiber LC Patch cord, Waterproof LC patch cord optional;

The fiber optic patch cord can be customized in production, color, label, packing, etc. We are very good at OEM and ODM production for various fiber optic patch cords;



Features

Can transmit maximum 150m or 300m at 850nm for 10G gigabit ethernet

Connect to 10GBase-SR, 10GBase-LRM, SFP+ and QSFP+ transceivers for 10Gb networks.

Low insertion loss and high return loss

3D pass rate optional;

Cable lengths, cable diameter and cable jacket optional

Aqua or beige connector color optional

OEM and ODM customized production



Applications

Telecommunication

Data Network

LAN, FTTX

CATV



Technical Data

Parameter for OM1/OM2/OM3/OM4 multi-mode patch cord

Characteristics Unit Value/Performance
Insertion Loss (IL) dB ≤0.2 (typical); ≤0.3 (maximum)
Return Loss (RL) dB PC≥35 typical
Operating Wavelength nm 850nm
Mating   ≥500 times
Tensile N 100
RoHS Compliant   Yes
Operating Temperature -20~+80

YOFC maxbend Multimode fiber .pdf

3D pass rate is optional
