Product Details:
|
| Connector: | E2000/APC Or Customized | Fiber Type: | SM G652D G657A1 G657A2 Or Customized |
|---|---|---|---|
| Jacket: | Tight Buffer Or Loose Tube | Jacket Color: | Yellow, White, Or Customized |
| Cable Diameter: | 0.9mm Or Customized | Jacket Material: | LSZH Or PVC Or Hytrel Customized |
| Length: | 1m, 1.5m, 2m Or Customized | Insertion Loss: | ≤0.3dB Or ≤0.2dB Or Customized |
| High Light: | sc sm pigtail,sc pc pigtail |
||
E2000/APC Fiber Optic Pigtail SM G652D 0.9mm Tight buffer or Loose tube 2 Meter
Description
E2000/APC Fiber Optic Pigtail manufactured by ANC International Co., Limited is used in telecom, Datacom networks and also used for high speed metropolitan and access network. Factory terminated E2000 pigtail has optimum optical performance and can easily be fusion or mechanically spliced to an existing fiber line. The E2000 fiber optic pigtail connector is one of the few fiber optic connectors featuring a spring-loaded shutter which fully protects the ferrule from dust and scratches. E2000 is compliant with EN 186270 and IEC 61754-15 standards.
Our E2000 fiber optic pigtails are with premium grade connectors and with typical 0.9mm outer diameter cables.
We supply the single mode 9/125 E2000 fiber optic pigtail cables in G652D, G657A1, G657A2, G655 or customized fiber. The cable jacket can be easy strip or tight buffer or semi-tight. Custom lengths, connector combinations and polishes are available.
Specification
E2000 plug according to IEC 61754-15
SM G652D, G657A1, G657A2, G655 or customized fiber optional
Tight buffer or loose tube cable jacket optional
12 Color sequence in sets according to IEC 60304: red, green, blue, yellow, white, gray, brown, violet, turquois, black, orange, pink optional
With test report, insertion loss and return loss tested at 100 %
Low insertion loss and back reflection loss
Good exchangeability
PC/UPC/APC polishing optional
LSZH or PVC or customized jacket optional
Zirconia ceramic ferrule fully protected by spring loaded shutter
Push-pull locking mechanism for easy installation
Features
Company with Telcodia GR-326 Core Specification
RoHS compliant
Compliant with European (EN 186270) and International (IEC 61754-15) standards.
Usage
FTTH Network
Optical termination box
Fiber Optic Telecommunication
Fiber Distribution Frame
Local area networks(LAN)
Wide area networks(WAN)
Technical Data
| Item | Parameter | |
| Single-mode | Multi-mode | |
| Insertion Loss | ≤0.3dB or ≤0.2dB or customized | |
| Return Loss | ≥50 dB (PC), ≥60 dB (APC) | |
| Quality Grade | C Grade, B grade or customized optional | |
| Repeatability | ≤0.1dB | |
| Durability | 0.2dB Max. 1000 mattings | |
| Operating Temperature | -40℃~+85℃ | |
| Storage Temperature | -40℃~+85℃ | |
| Interferometer | 100% pass optional | |
E2000 Connector Specification
| Housing Color | Green for SM/APC, Blue for SM/PC |
| Ferrule Diameter | 2.5mm Ceramic Ferrule |
| Ferrule Concentricity | ≤0.5μm |
| Cable Diameter | 0.6mm-3.0mm |
| RoHS/REACH | Compliant |

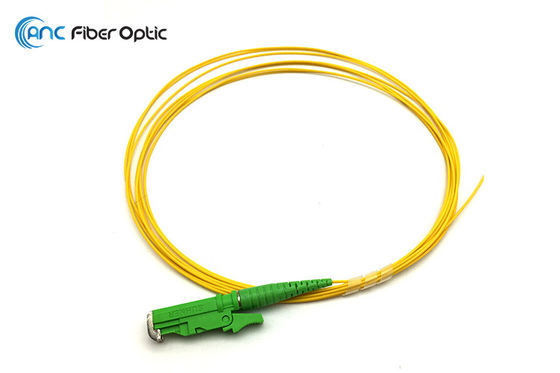

E2000/APC Fiber Optic Pigtail Picture
