SC PC SC APC Voa Variable Optical Attenuator Single Mode Adapter Type

SC PC SC APC Voa Variable Optical Attenuator Single Mode Adapter Type
SC PC SC APC Voa Variable Optical Attenuator Single Mode Adapter Type SC PC SC APC Voa Variable Optical Attenuator Single Mode Adapter Type SC PC SC APC Voa Variable Optical Attenuator Single Mode Adapter Type SC PC SC APC Voa Variable Optical Attenuator Single Mode Adapter Type

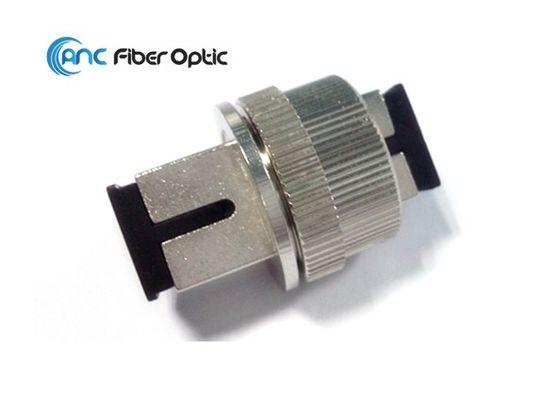

Large Image :  SC PC SC APC Voa Variable Optical Attenuator Single Mode Adapter Type

Product Details:
Place of Origin: China
Brand Name: ANC
Certification: RoHS
Model Number: SC Variable Attenuator
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: please ask
Packaging Details: 1pc/bag
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per day

SC PC SC APC Voa Variable Optical Attenuator Single Mode Adapter Type

Description
Attenuation: 0-30dB Hand Adjustable VOA Type: SCPC, SC APC Optional
Test Wavelength: 1310nm And 1550nm Return Loss: >50dB For SM/PC; >60dB For SM/APC
Packing: 1pc Per Bag Technology: Air-gap Technology
High Light:

single mode fiber attenuator

,

variable optical attenuator

SC PC SC APC Voa Variable Optical Attenuator Single Mode Adapter Type



Description



Single Mode Adapter Type SC PC SC APC 0-30dB Variable Optic Attenuator manufactured by ANC International Co., Limited has a structure similar to an optical adapter. It utilizes the air gap between the two connectors to realize optical attenuation. However, the air gap can be continuously adjusted and fixed manually. This induces a variable optical attenuation from 0dB to 30dB. This adapter type SC variable optical attenuator can be used in applications where optical attenuation needs to be frequently adjusted. It has very small size and is very low-cost.

ANC can produce fixed bulkhead (female-female) fiber optic attenuator, fixed plug-in (female-male) fiber optic attenuator and variable fiber optic attenuator.



Features



High attenuation precision
Good stability
Small size and light weight
Easily adjusted



Applications



Optical fiber communication systems
Optical fiber CATV systems
Optical power tests

SC PC SC APC Voa Variable Optical Attenuator Single Mode Adapter Type 0
