SM MM Simplex FC Fiber Optic Adapters In Big D Small D Shape for CATV

SM MM Simplex FC Fiber Optic Adapters In Big D Small D Shape for CATV
SM MM Simplex FC Fiber Optic Adapters In Big D Small D Shape for CATV SM MM Simplex FC Fiber Optic Adapters In Big D Small D Shape for CATV SM MM Simplex FC Fiber Optic Adapters In Big D Small D Shape for CATV SM MM Simplex FC Fiber Optic Adapters In Big D Small D Shape for CATV

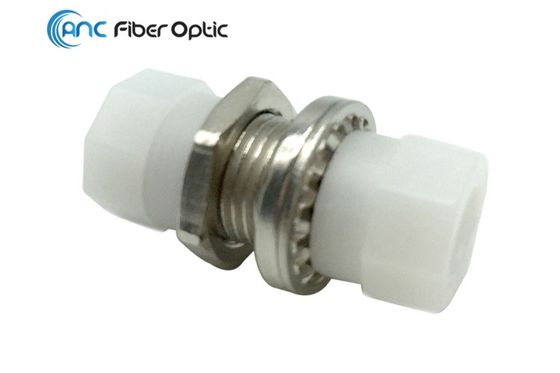

Large Image :  SM MM Simplex FC Fiber Optic Adapters In Big D Small D Shape for CATV

Product Details:
Place of Origin: China
Brand Name: ANC
Certification: RoHS
Model Number: Simplex FC Adapter
Payment & Shipping Terms:
Minimum Order Quantity: 25pcs
Price: please ask
Packaging Details: 25pcs per box
Delivery Time: 3-5 working days
Supply Ability: 30000pcs per day

SM MM Simplex FC Fiber Optic Adapters In Big D Small D Shape for CATV

Description
Housing: Zinc-alloy Or Brass Optional Shape: Big D, Small D Or Customized Shape
Insertion Loss: <0.2dB (Maximum) Sleeve: Mostly Ceramic, Sometimes Bronze
Packing: 50pcs/box Or 25pcs/box Or Customized Dust Cap: White, Red, Green Or Customized Color
High Light:

fiber optic connector adapters

,

lc duplex adapter

SM MM Simplex FC Fiber Optic Adapters In Big D Small D Shape for CATV



Description



Simplex FC Fiber Optic Adapter manufactured by ANC International Co., Limited has big D (13mm diameter), small D (11mm diameter), rectangle, square, oval different shapes optional. For rectangle FC adapter, the housing can be either metal or plastic.

The FC fiber optic adapter is developed to meet the challenges of the Datacom and Telecom industrials, including compatibility with current standard cable sizes and fiber types, adhering to industry mechanical and environmental standards. These FC Adapters combine a metal housing and a precision SC zirconia ceramic or rugged phosphor bronze sleeve.

ANC has big and automatic adapter production lines in Zhejiang Province.  It can supply full-lines of fiber optic adapters, such as

Standard bulk head adapters, such as SC, LC, FC, ST, MU, MPO, E2000, MTRJ, DIN, SMA fiber optic adapters etc;

Female-Female hybrid adapters, such as LC-SC, LC-FC, SC-FC, SC-ST, MU-LC, fiber optic adapters etc;

Female-Male hybrid adapters, such as SC Male-LC Female; FC male-SC female fiber optic adapters etc;

Various shutter adapters;

Bare fiber adapters;



Specification



FC Fiber Adapter Type: SM FC/PC, SM FC/APC, MM FC/PC adapter available

Square, rectangle, oval, D-hole FC Adapter optional

FC Adapter Cap Color: Red, Green, etc.

Metal material and ceramic sleeve

One-piece or Multi-piece FC Square Adapters available

Precision alignment mechanism

Low insertion loss

RoHS compliant



Usage

Telecommunication

Data Network

LAN, FTTX

CATV



Optical Performance

  Premium Grade Standard Grade
Insertion Loss ≤0.1dB ≤0.2dB
Durability 1000 times 1000 times





Environment and Mechanical

Properties Test condition Compliant Test result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability 1000 Mating, clean every 25 mating. IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-6 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22-28cm IEC61300-2-12 ≤0.2dB
Temperature Cycling 40ºC to +75ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature humidty cycling 40ºC, 95%, 96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC   ≤0.2dB
Storage Temperature -40ºC to +85ºC   ≤0.2dB



Related Products Pictures

SM MM Simplex FC Fiber Optic Adapters In Big D Small D Shape for CATV 0





SM MM Simplex FC Fiber Optic Adapters In Big D Small D Shape for CATV 1
