Product Details:
|
| Connector A: | Customized MPO Or MTP | Connector B: | Customized MPO Or MTP |
|---|---|---|---|
| Pin: | With Or Without Optional | Length: | 10m, 20m, 50m, 100m Customized Length |
| Fiber Core: | 12F, 24F, 48F, 72F, 96F, 144F Optional | Polarity: | Type A, B, C Optional |
| High Light: | mpo patch cord,mpo trunk cable |
||

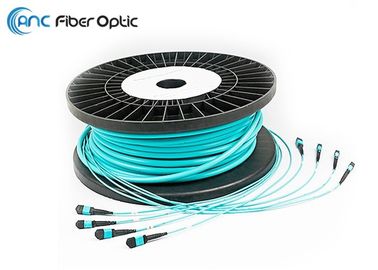

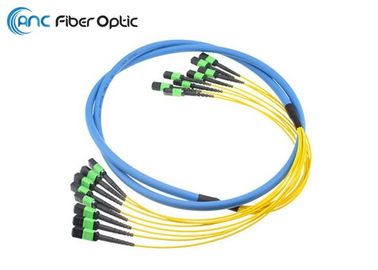

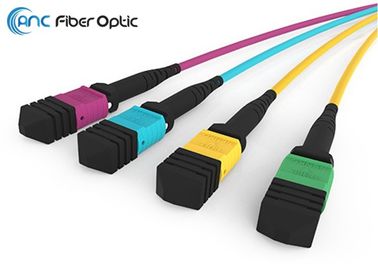

24F 48F 72F 96F 144F MPO Cable Assemblies MPO To MPO Trunk Cable Assembly
Description:
12F 24F 48F 72F 96F 144F MTP/MPO to MPO Trunk Cable Assembly manufactured by ANC International Co., Limited is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. These MTP MPO trunk cables serve as a permanent link connecting the MTP/MPO modules to each other. They are available with 12, 24, 48, 72, 96 and even 144 fibers. Their ends are terminated with 12-fiber or 24-fiber MTP/MPO connectors according to customer's choice. These trunk cables help to create a simple, cost-effective 40G networking by installing a structured cabling system.
Features:
100% Interferemeter Pass
Easier upgradability to 40G and 100G with MPO
Faster installation with pre-terminated solutions
Pulling eyes for easier installation is optional;
Higher quality, shorter installation time, better protection,
Smaller volume of cable,
Lower total costs.
Applications:
Data Center
FTTx
Optical transmission network;
Optical Performance:
| MPO/MTP | SM Standard | SM Low Loss | MM Standard | MM Low Loss | |
| Insertion Loss | Typical | 0.35dB | 0.20dB | 0.35dB | 0.20dB |
| Max | 0.75dB | 0.35dB | 0.65dB | 0.35dB | |
| Return Loss | APC≧50dB | ≧25dB | ≧35dB | ||
| PC≧40dB | |||||
| Durability | ≤0.3dB (change 500matings) | ≤0.3dB (change 1000matings) | |||
| Exchangeability | ≤0.3dB (Connector randomly) | ||||
| Tensile Strength | ≤0.3dB (Max 66N) | ||||
| Vibration | ≤0.3dB (10~55Hz) | ||||
| Operation Temperature | -40℃ ~ +75℃ | ||||
Interferemeter Test:
| MPO/MTP | Dimension MT |
| Radius of Curvature | X≧2000mm; Y≧50mm |
| Fiber Height | 1000~4000nm |
| Endface Angle | X±0.3°; Y±0.3° |
| Core Dip | -300nm ~ 300nm |
| L(M) | Tolerance |
| ≤10 |
+ 15CM |
| 10<L≤30 | + 20CM |
| >30 | + 10% |
